The 'X' is for eXtraordinary. Or eXciting. You decide.

How many times have you wished for a rental panel that had indoor resolution but was also ready for outdoors shows?

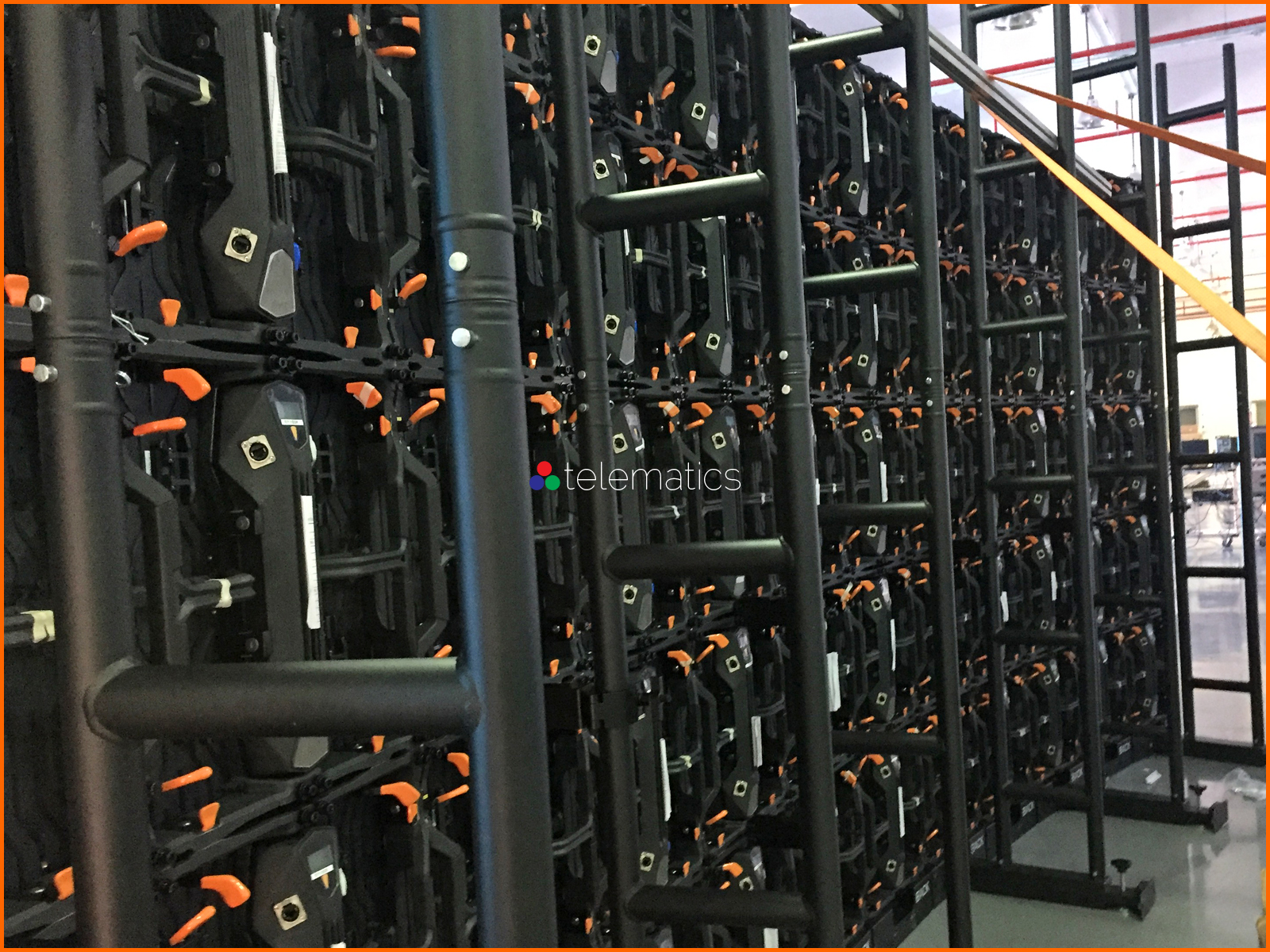

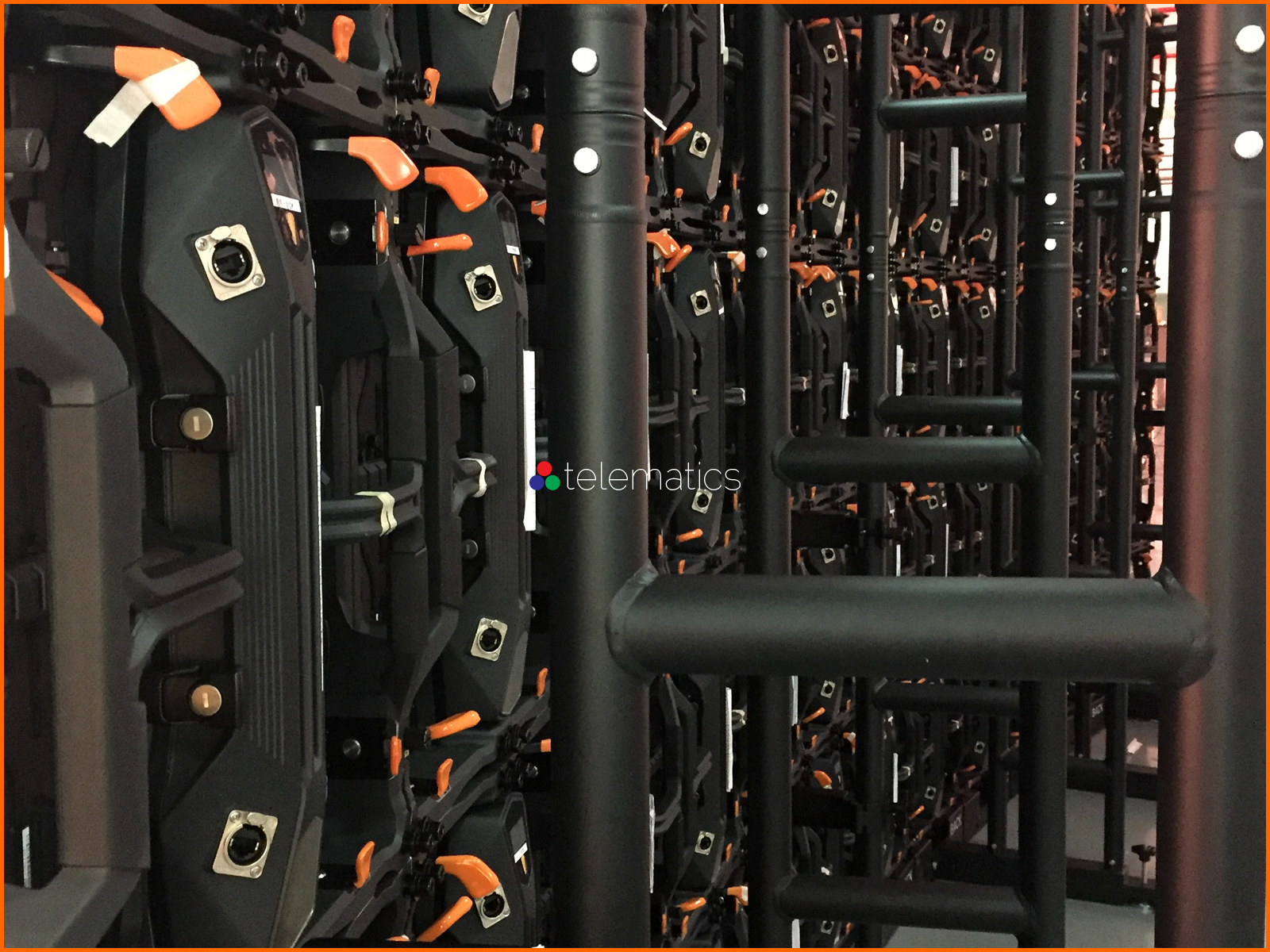

And did your wish-list include a built-in ladder? Seriously. How cool is that?

Pixels

Pixel to pixel spacing begins at an impressive 1.56 millimeters to create a display resolution of more than
409,000 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series X1.5 looks great from less than 2 meters away.

Dimensions

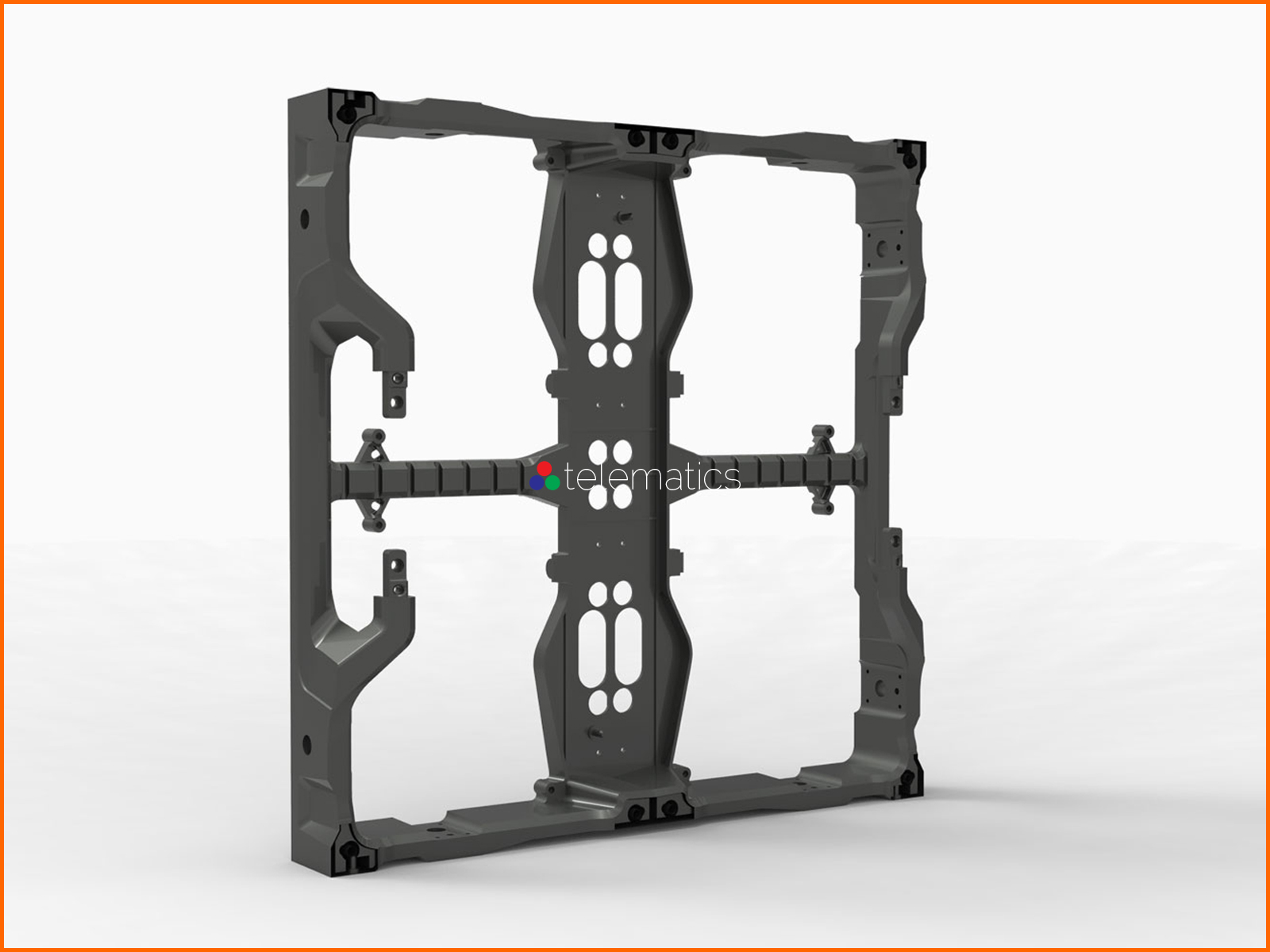

The Series X is a precision aluminum panel that weighs approximately
10 kilograms with XYZ dimensions of
500 * 500 * 100 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 19 * 19 * 4 inches
and a featherweight 22 pounds.

Viewing

Display brightness levels extend from 600 cd/m² to 5000 cd/m².
Screen refresh are exceptional at 3840 Hz for flicker-free video.
Off-axis viewing is up to 70° which means that pretty much everyone in the room can see the Series X whether coming or going.

Performance

Colors are amazing with levels of red¹³ * green¹³ * blue¹³ that provide for a combined 549 billion colors and a silky smooth 8,192 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

Power

Rated power consumption is a modest 210 ~ 266 Watts per square meter and up to 760 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

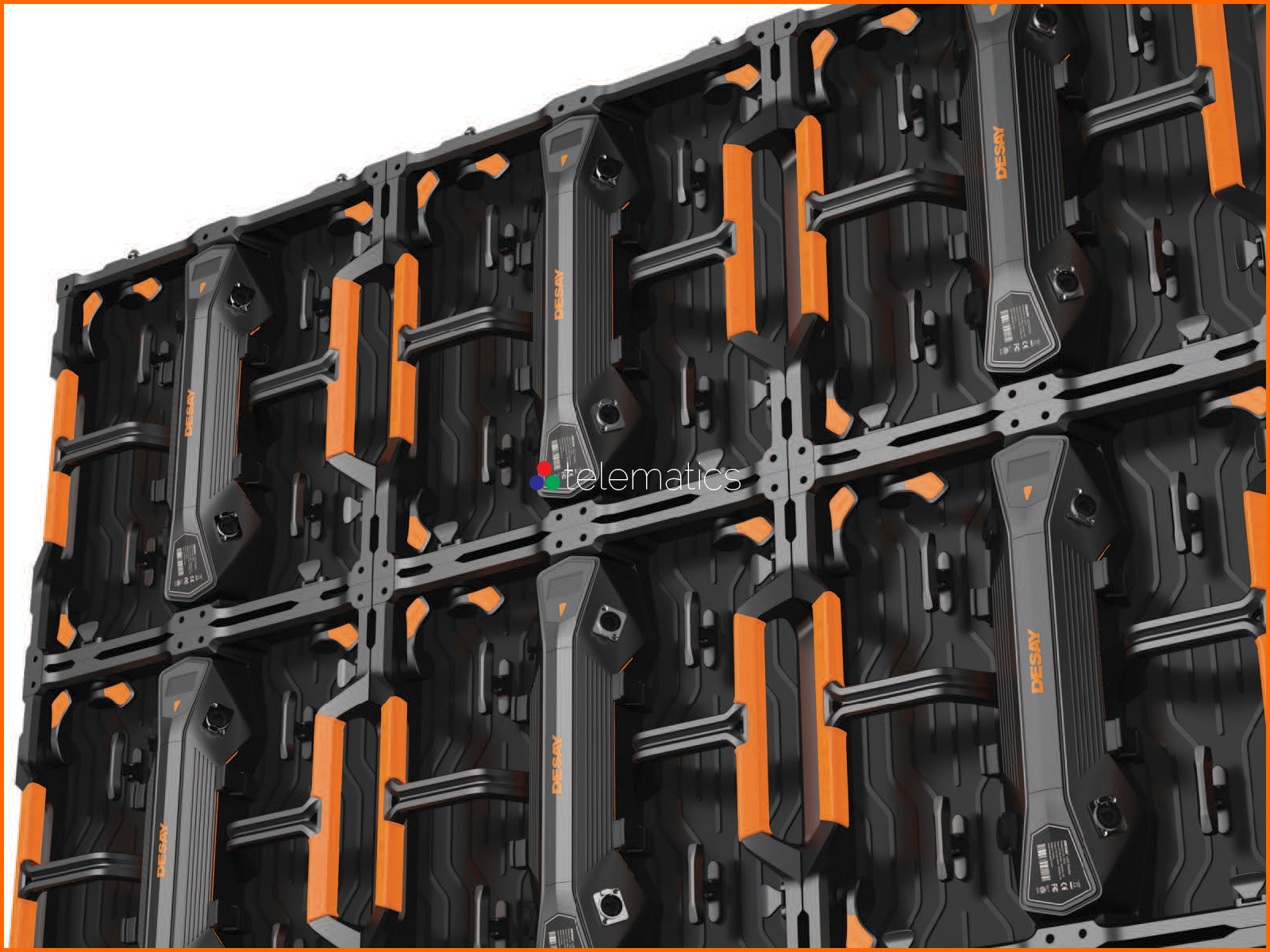

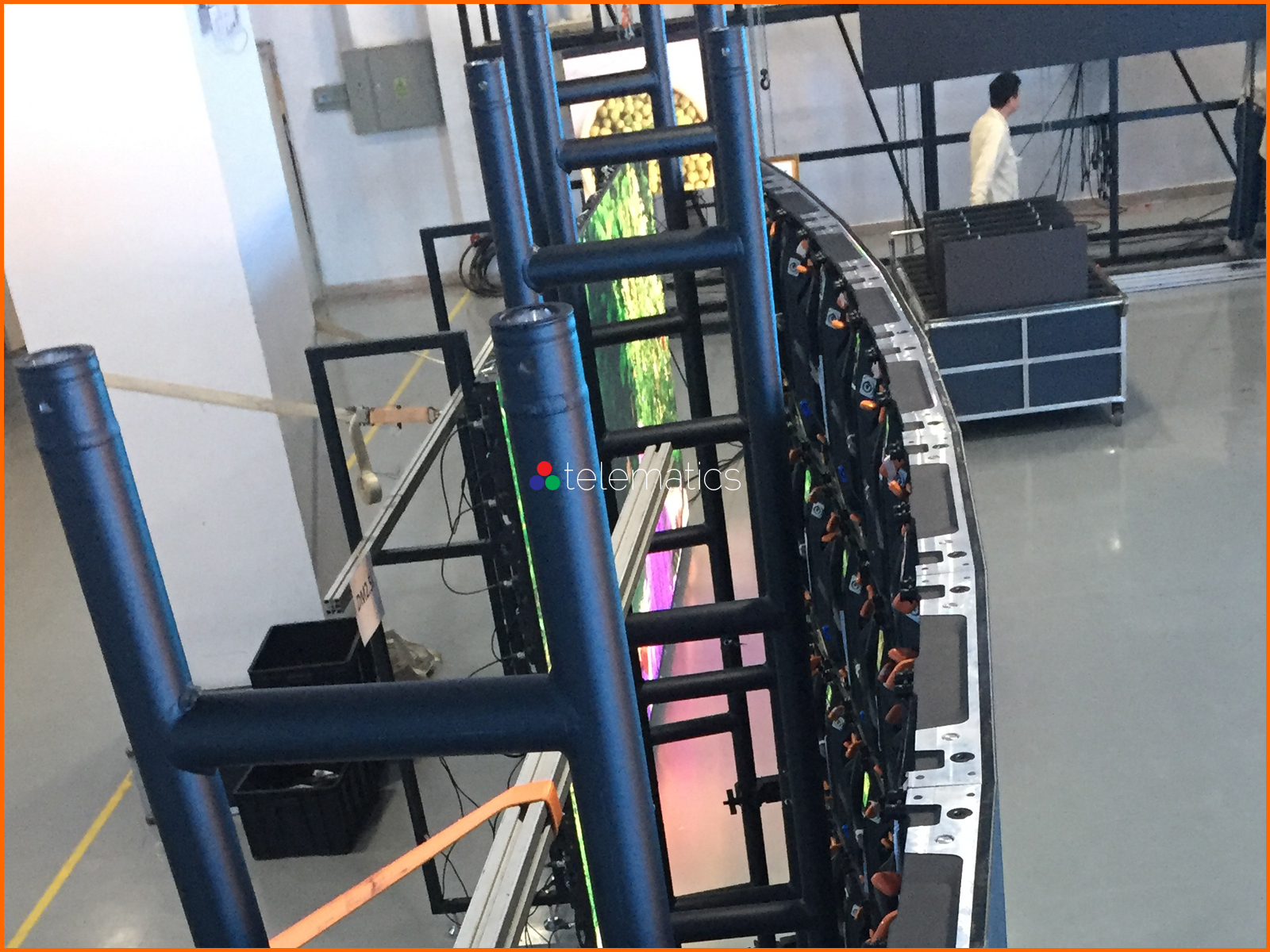

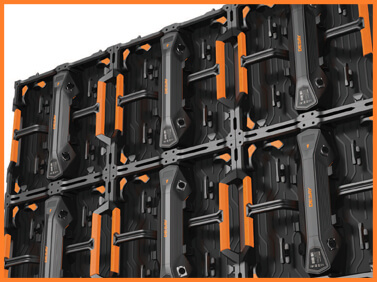

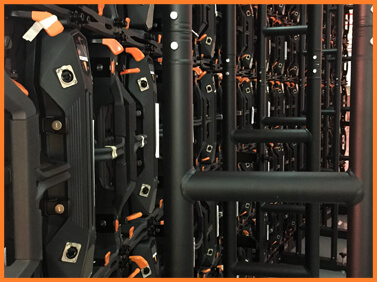

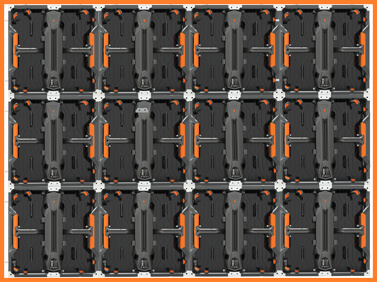

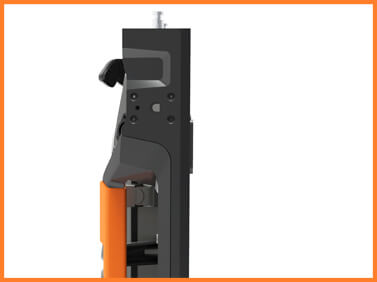

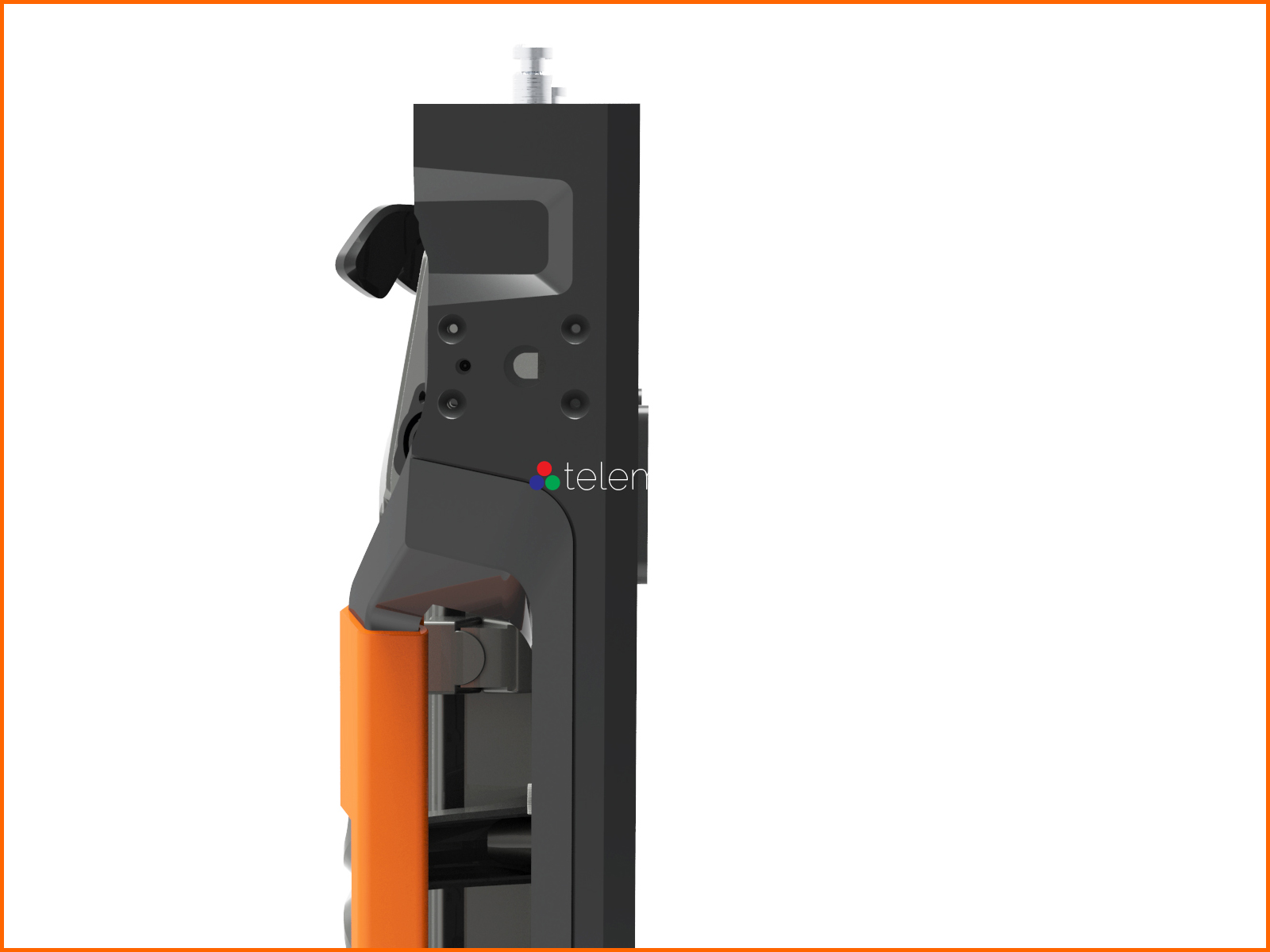

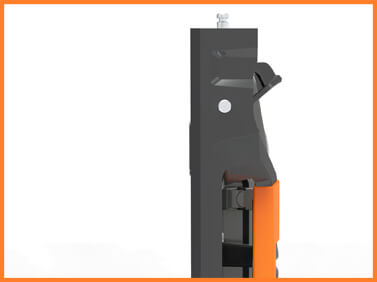

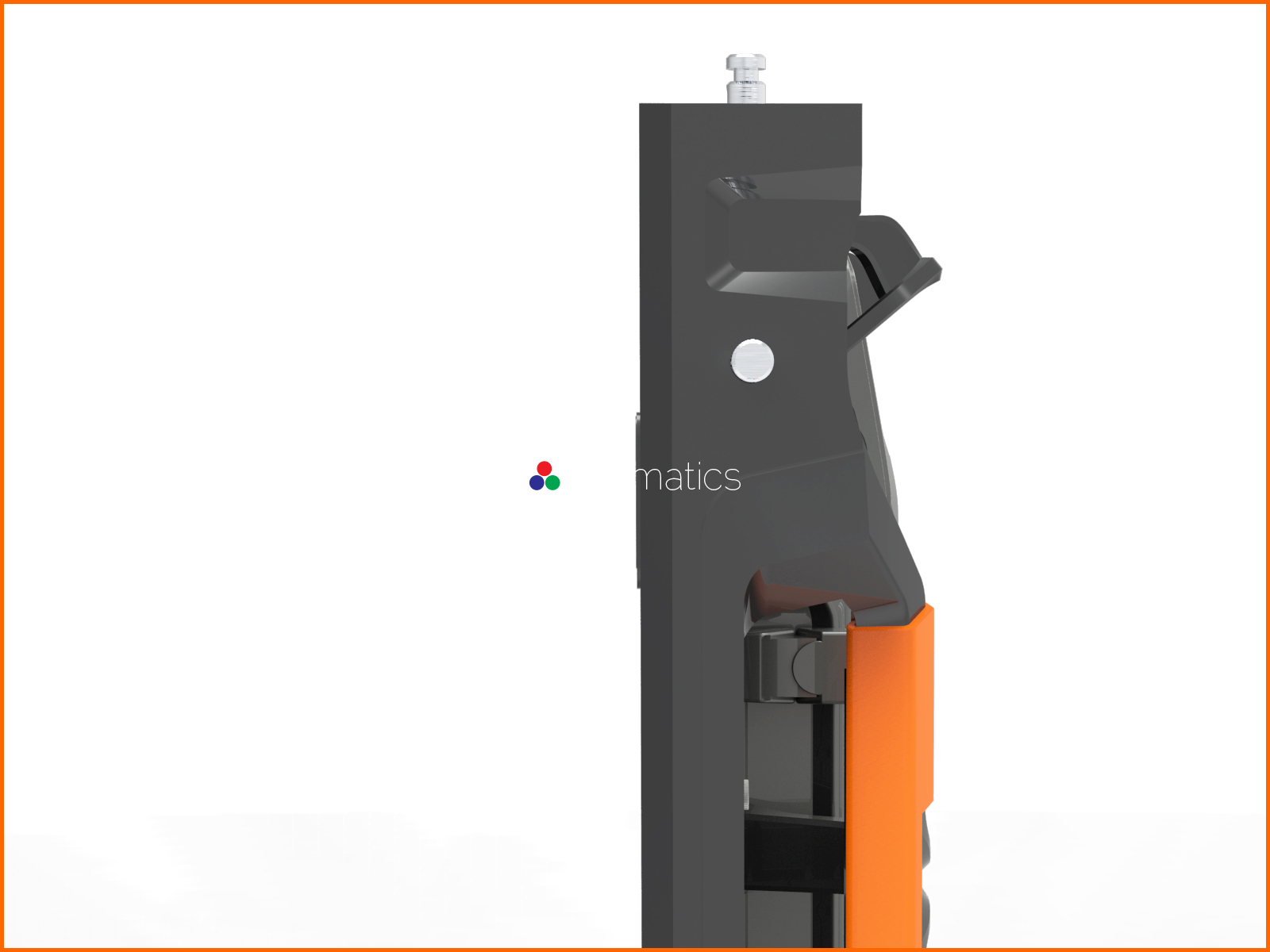

The Series X attaches to surrounding panels using super-quick locking fasteners that are just what your Roadies ordered. Oh, and they also ordered a built-in ladder. Go figure. And of course power and data cabling is simple and intuitive with quick-release Neutrik components.

Specifications · Desay Series X

Executive position wanted. Permanent or temporary.

Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series	X1⁵⁶ⁱ	X1⁹⁵ⁱ	X2⁶⁰ⁱ	X2⁹⁰ⁱ	X3¹⁰	X4⁴⁶
Pixels ^{mm · meters}
Resolution ^{· ctc distance · mm}	1.56	1.95	2.60	2.90	3.10	4.46
Resolution ^{· per linear meter}	640	512	384	336	322	224
Resolution ^{· per square meter}	409600	262144	147456	112896	104058	50176
Dimensions ^{mm · (inch)}
Width	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)

Height	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)

Depth	100 ^(3.9)	100 ^(3.9)	100 ^(3.9)	100 ^(3.9)	100 ^(3.9)	100 ^(3.9)
Weight ^{kilo · (pound)}
Panel	11.0 ^(24.2)	10.0 ^(22.0)	10.0 ^(22.0)	10.5 ^(22.1)	10.5 ^(22.1)	10.5 ^(22.1)
Viewing ^(upgrade)
Brightness ^{· candela/m²}	600	800	1500	1500	3000	5000

Refresh ^{· hertz}	3840	3840	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾

Hard Face ^{· acrylic resin}	^(option)	^(option)	^(option)	^(option)

Angle ^{· 50% brightness}	70° ↔ 70°	70° ↔ 70°	70° ↔ 70°	70° ↔ 70°	70° ↔ 70°	70° ↔ 70°
Angle ^{· 50% brightness}	70° ↕ 70°	70° ↕ 70°	70° ↕ 70°	70° ↕ 70°	50° ↕ 50°	25° ↕ 45°
Performance
Colors ^{· rgb · bit depth}	2¹³	2¹³	2¹⁴	2¹⁴	2¹⁴	2¹⁴
Control ^{· brightness levels}	255	255	255	255	255	255
Lifetime ^{· 50% brightness · years}	11.4	11.4	11.4	11.4	11.4	11.4
Power ^{square meter}
Watts ^{· (average draw)}	720 ^(35%)	760 ^(35%)	660 ^(35%)	620 ^(35%)	760 ^(35%)	640 ^(35%)

Voltage ^{· VAC · adaptable}	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240
Installation
Wall ^{· custom steel frame}	⬚	⬚	⬚	⬚	⬚	⬚
Ceiling ^{· fly bar}	⭭	⭭	⭭	⭭	⭭	⭭
Floor ^{· floor support}	⭫	⭫	⭫	⭫	⭫	⭫

IP Code ^{· front · rear}	30 · 30	30 · 30	30 · 30	65 · 54	65 · 54	65 · 54
Operating ^{· celsius · (fahrenheit)}	-10 ⁽¹⁴⁾ · 40 ⁽¹⁰⁴⁾	-10 ⁽¹⁴⁾ · 40 ⁽¹⁰⁴⁾	-10 ⁽¹⁴⁾ · 40 ⁽¹⁰⁴⁾	-20 ^(-4) · 45 ⁽¹¹³⁾	-20 ^(-4) · 45 ⁽¹¹³⁾	-20 ^(-4) · 45 ⁽¹¹³⁾

Fine Print

Specifications	Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty	Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty	The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...

Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu

About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

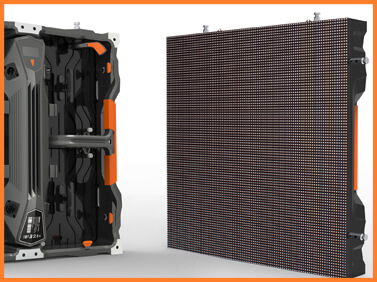

Desay Series X

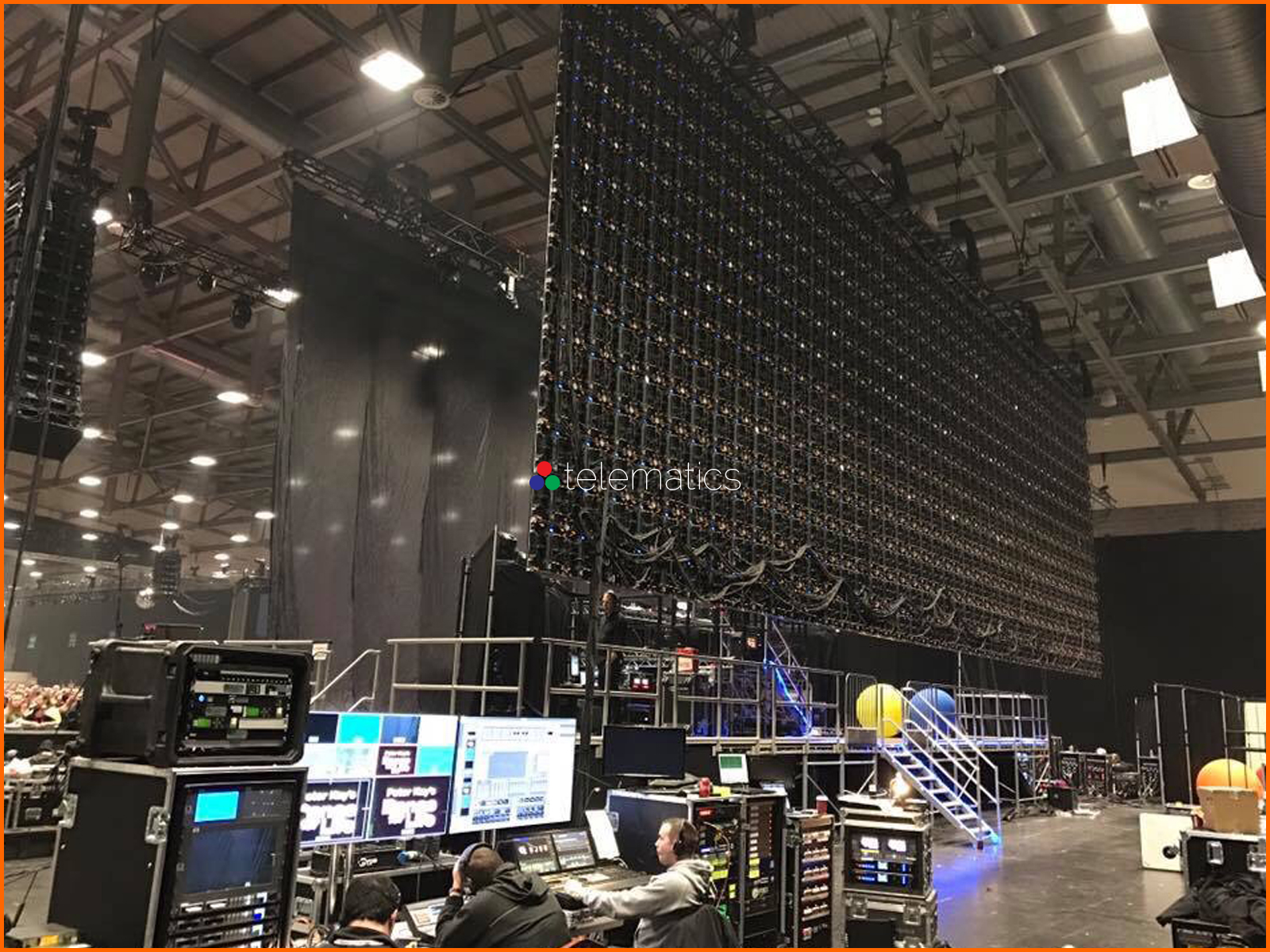

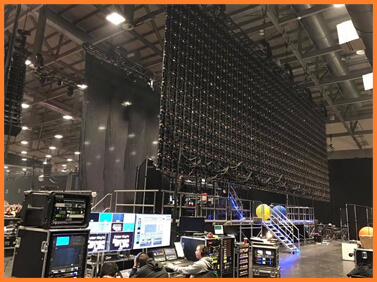

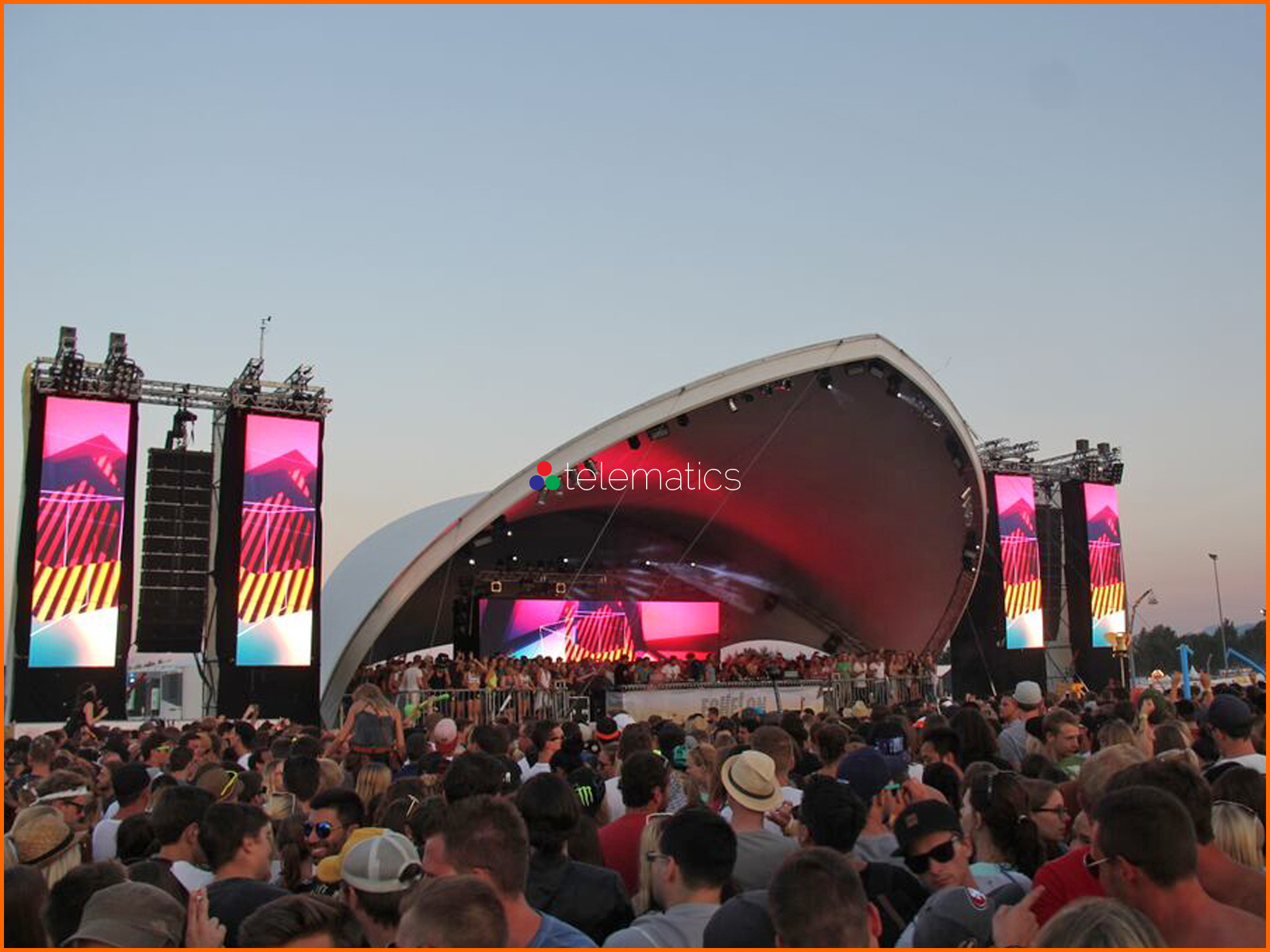

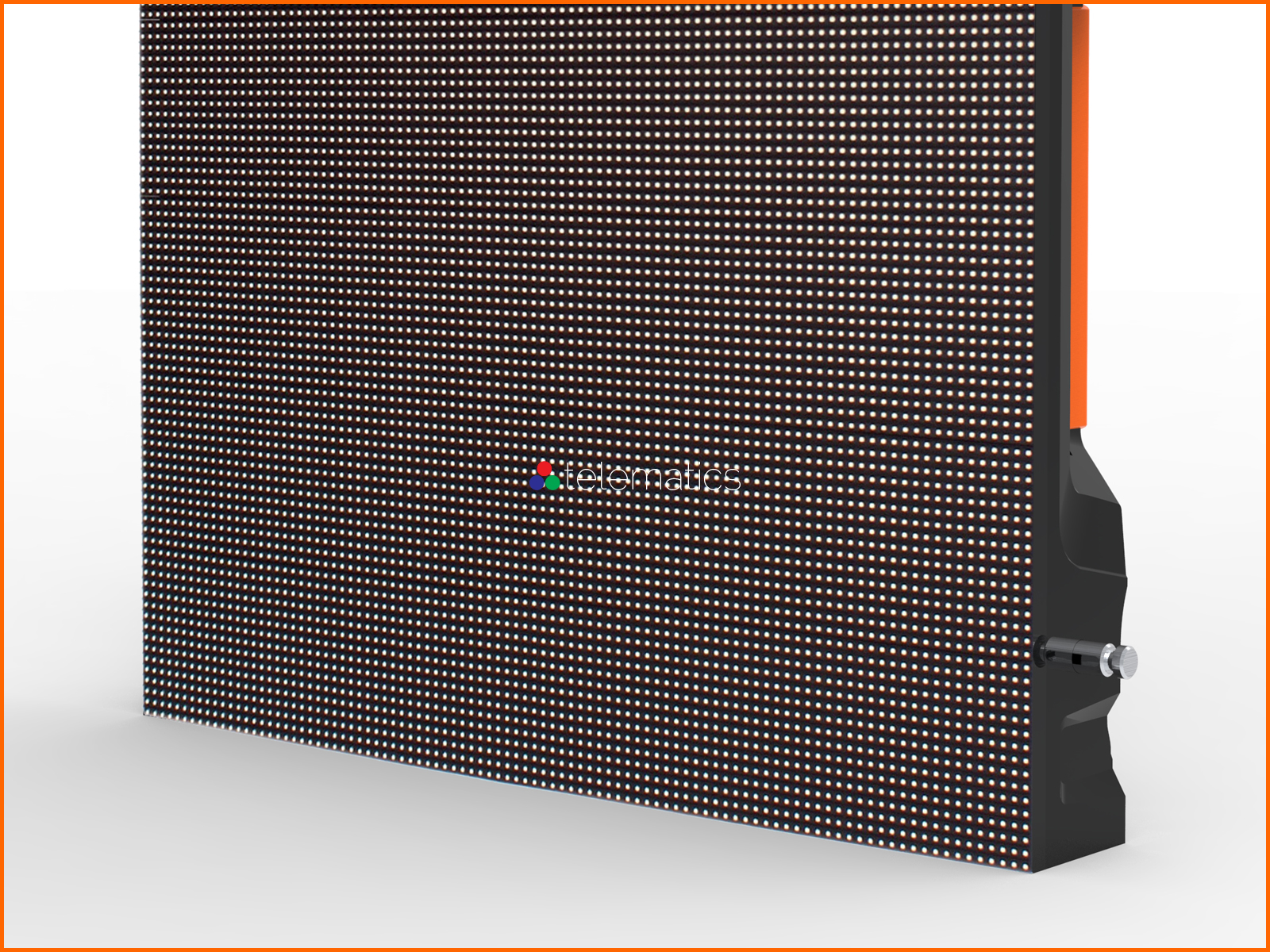

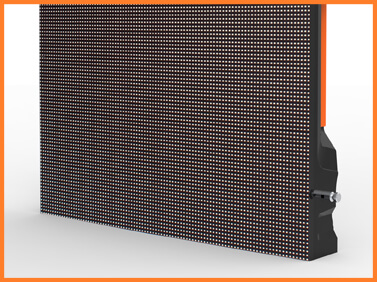

The Series X is a performance panel that is perfect for indoor or outdoor stage events and just so happens to do brilliant double-duty as permanent installation panel.

The dimensions of 500 * 500 * 100 millimeters make for a lightweight panel that is easy to handle going up, coming down or packing away. And we added a built-in ladder in case you missed a spot.

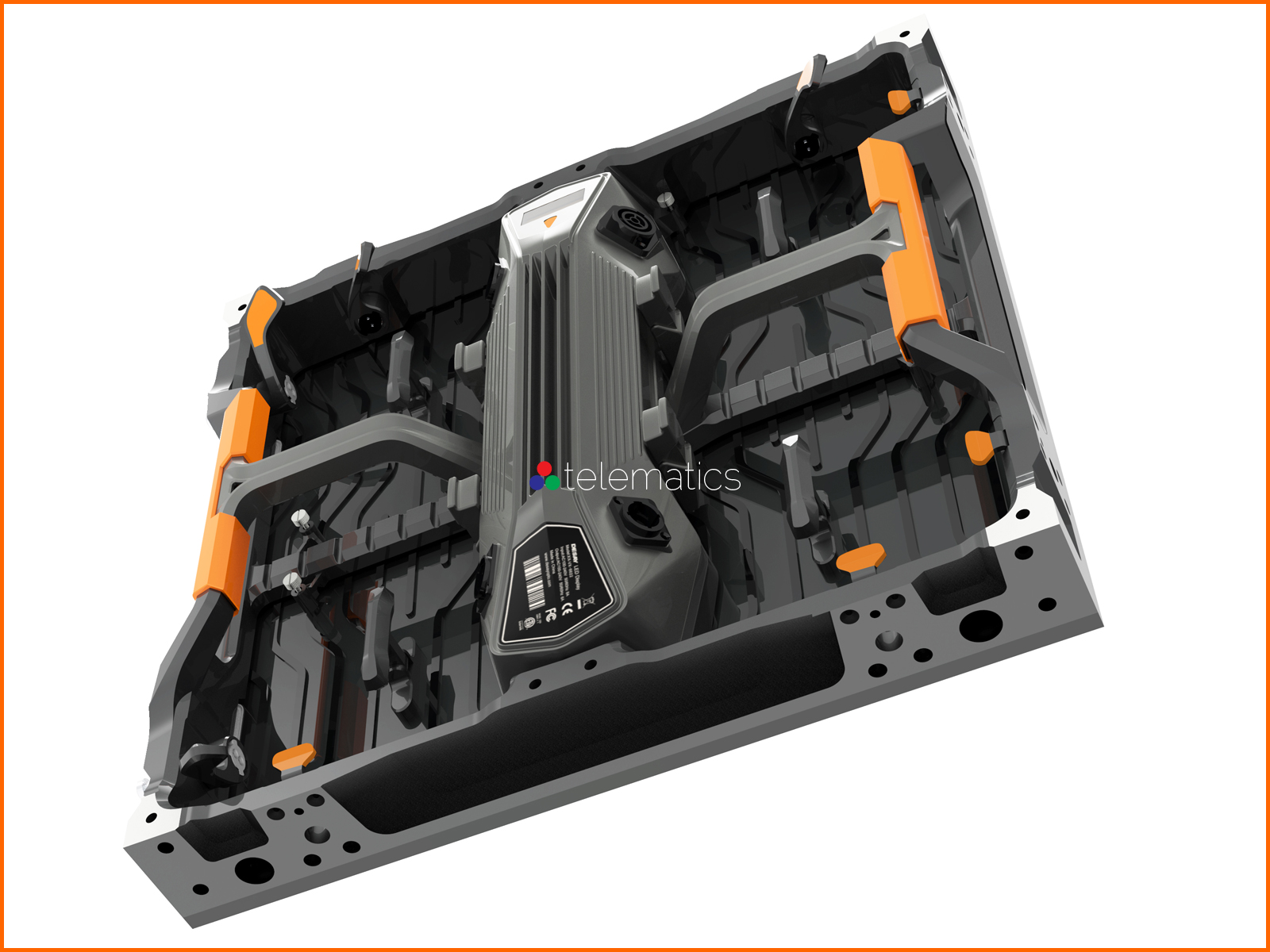

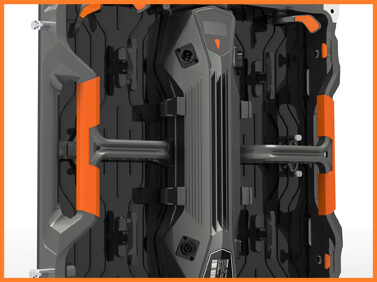

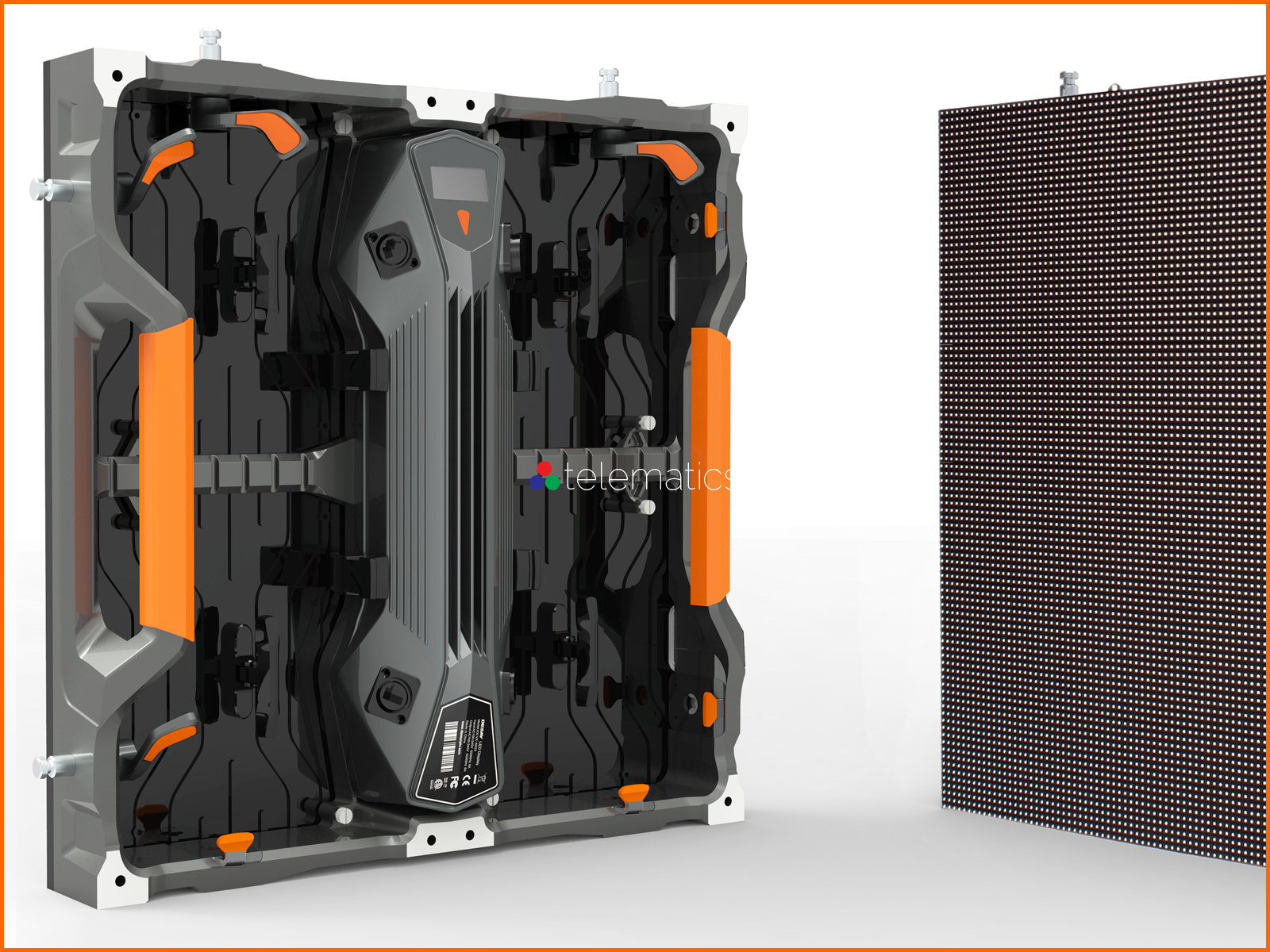

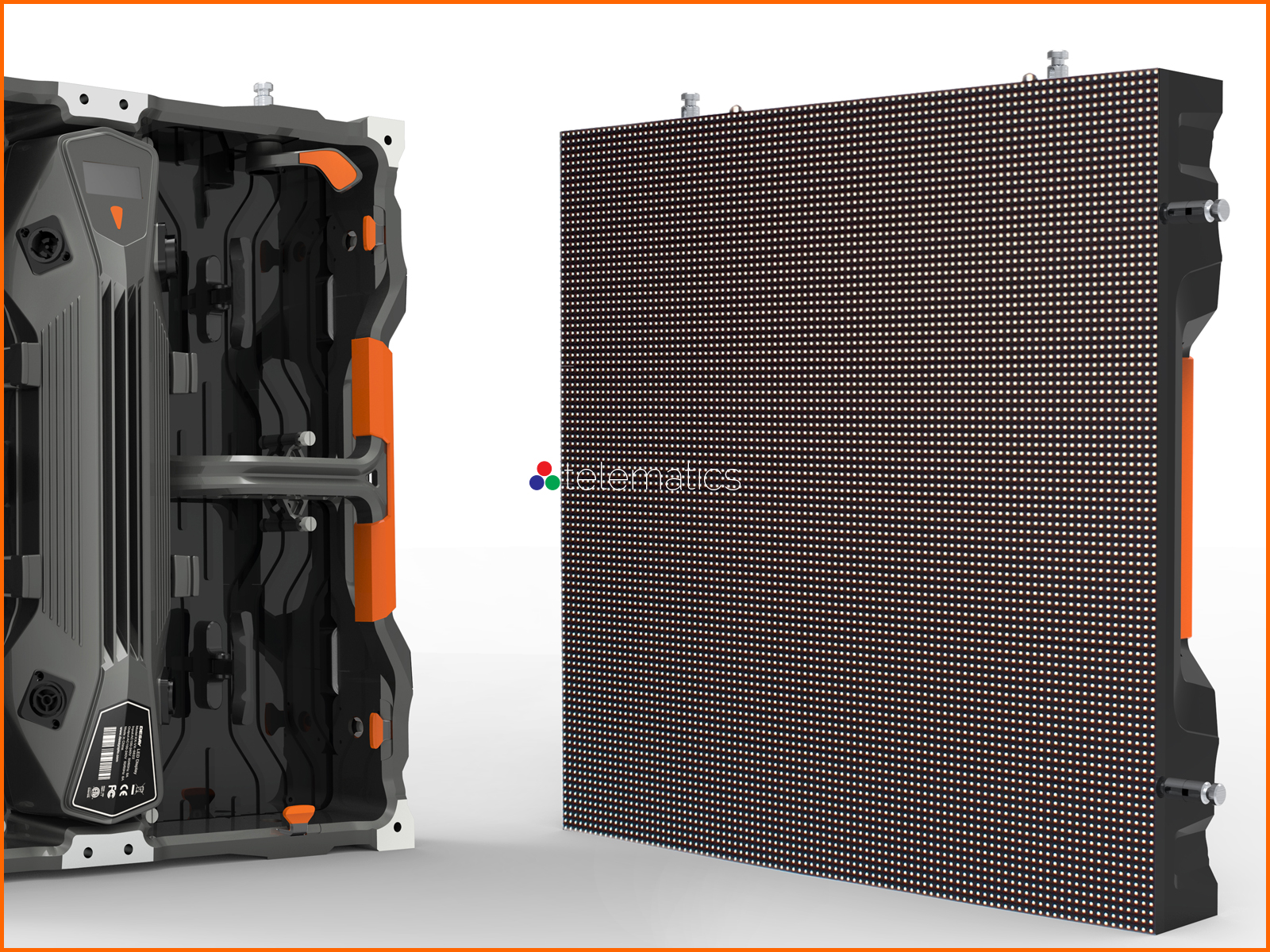

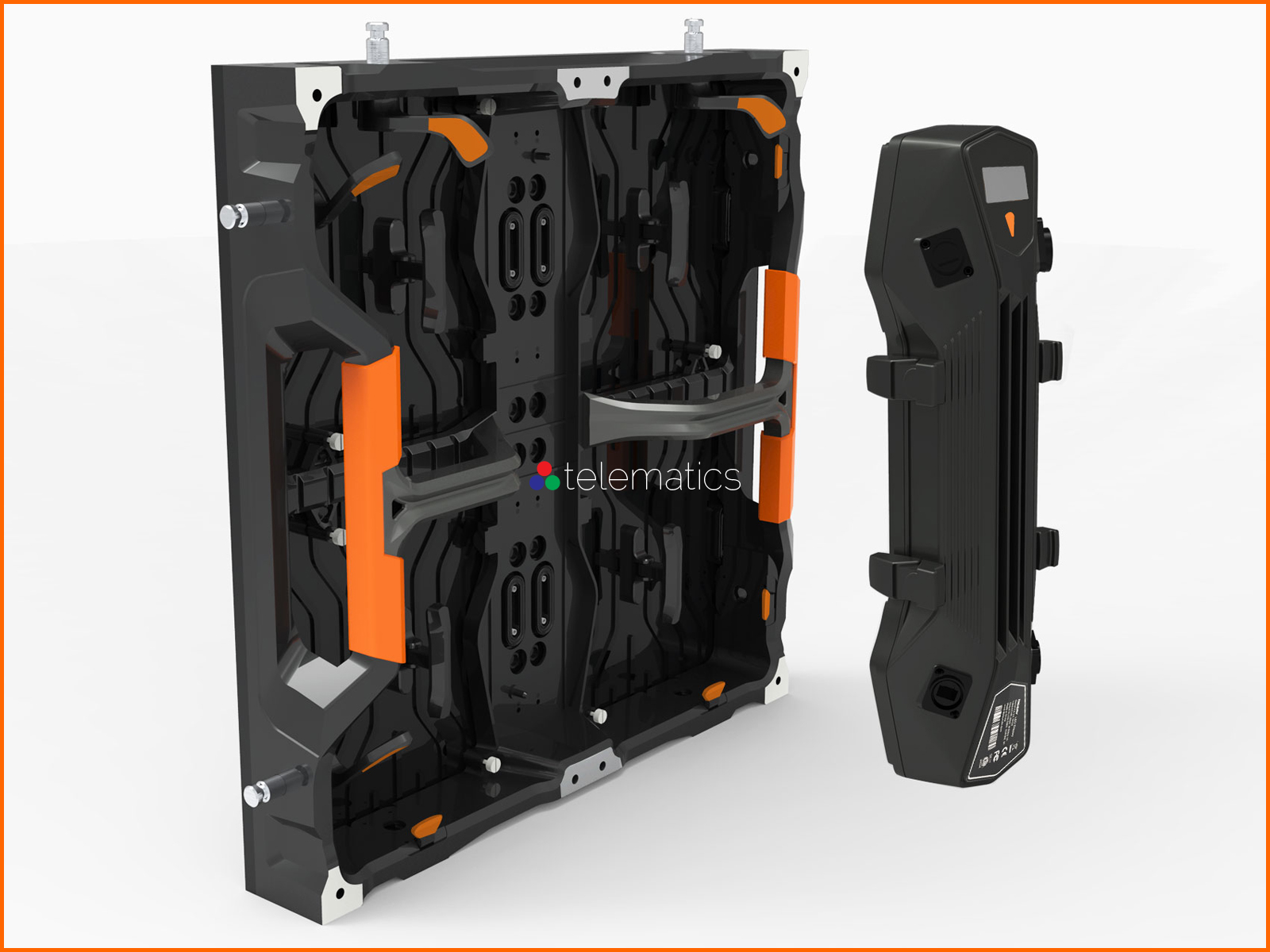

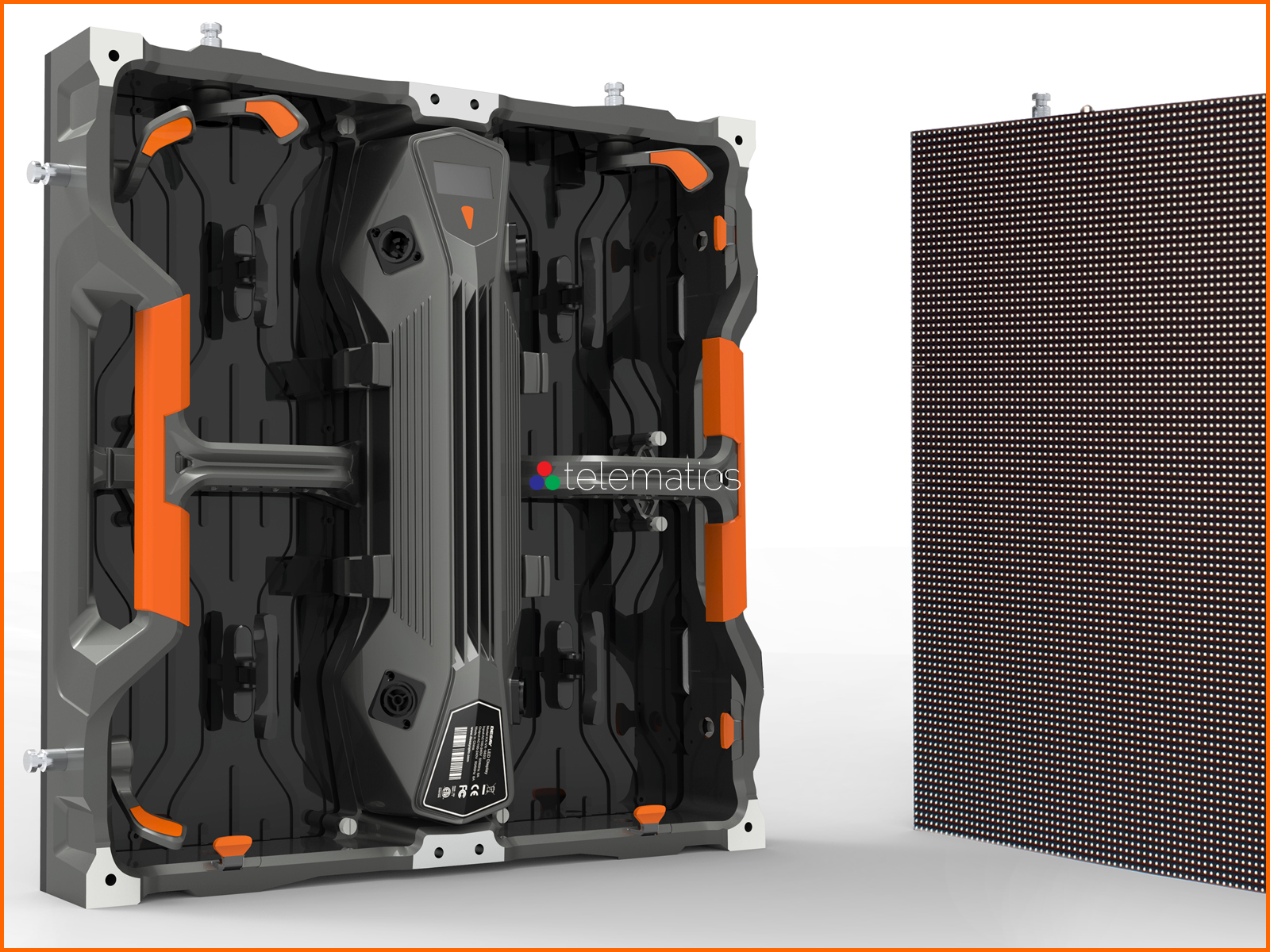

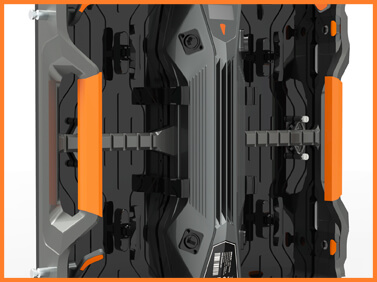

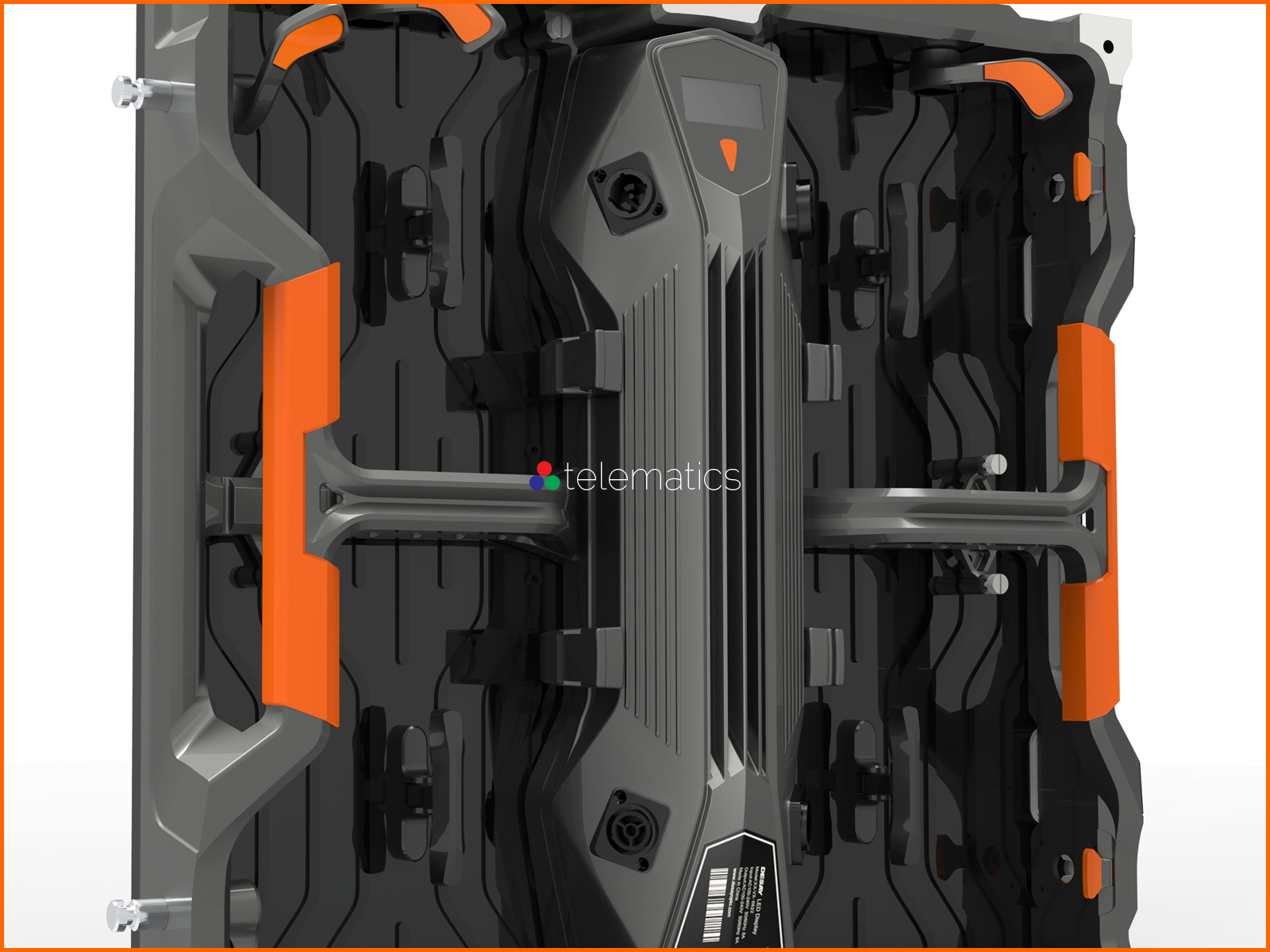

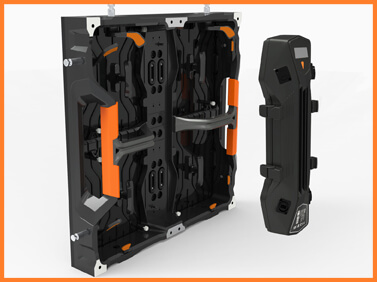

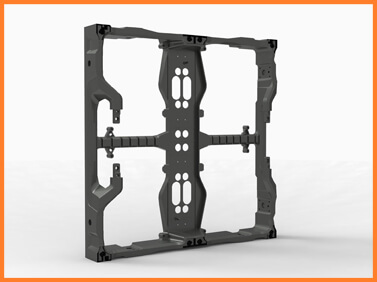

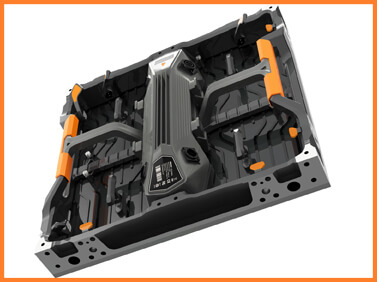

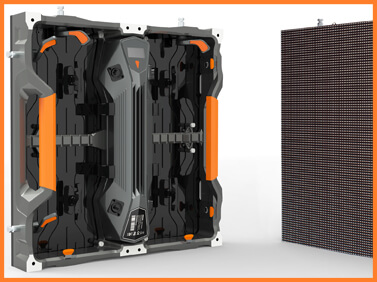

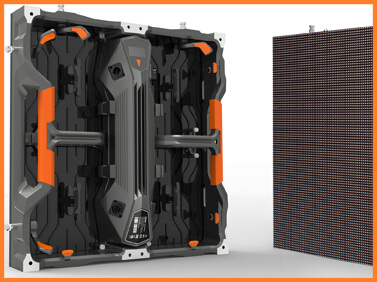

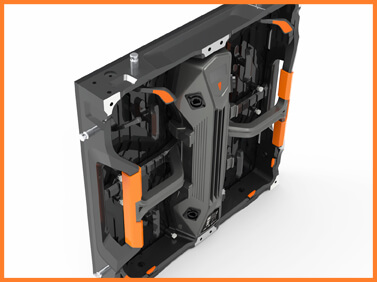

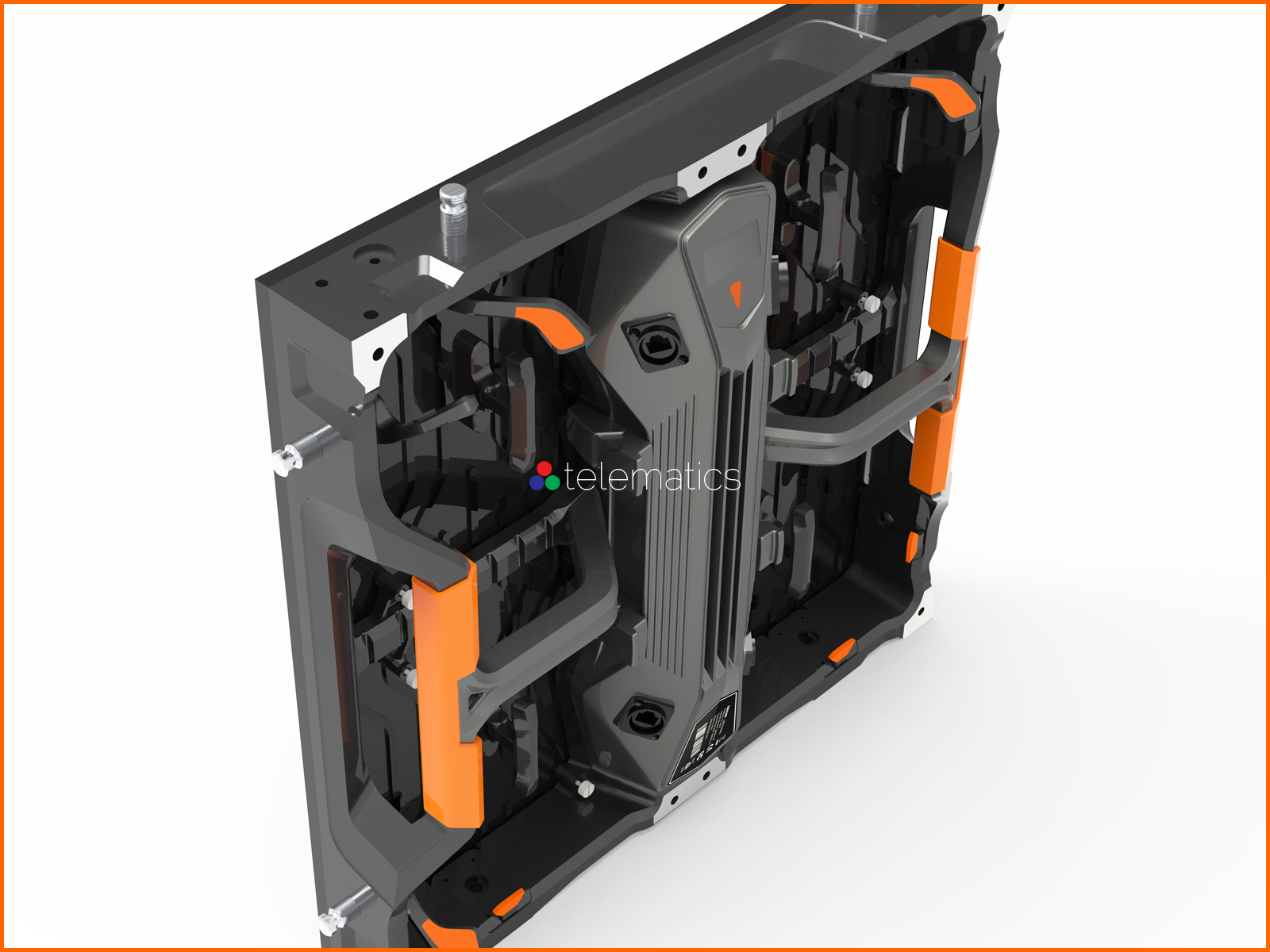

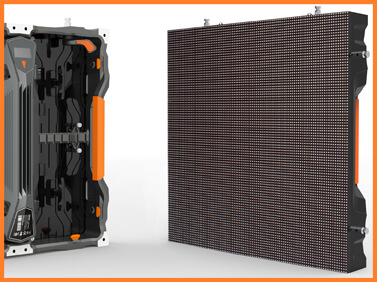

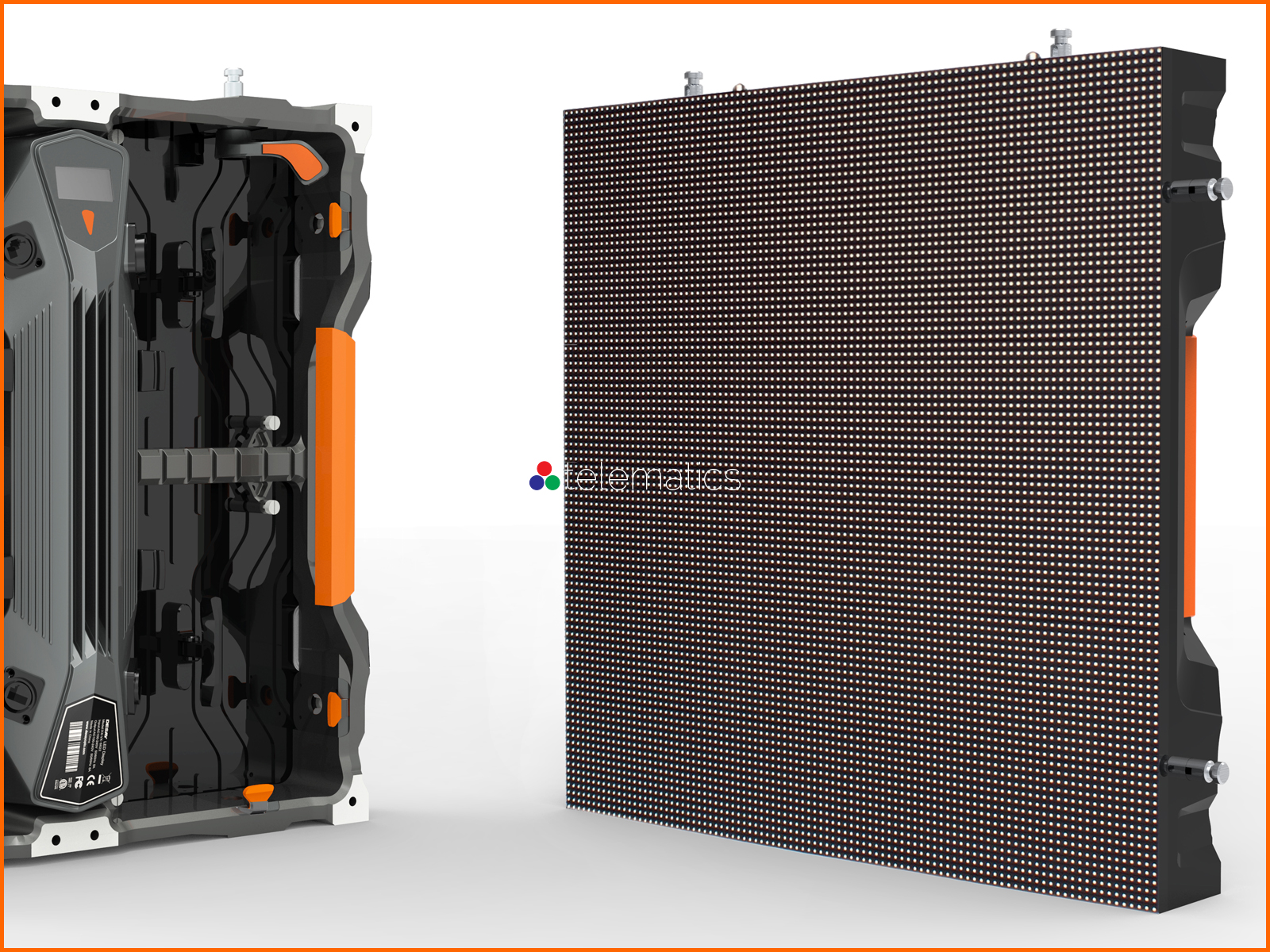

The Series X panel is made up of 4 LED modules, a central power box and an aluminum frame. Everything disconnects in moments from the back or using a custom magnetic tool, from the front. This feature allows for permanent installations to be mounted tightly to walls, requiring extra space only for adequate thermal ventilation instead of technicians.

Pixel density starts at 36,864 and increases incrementally to more than seven times that number at 262,144 pixels per square meter across 6 models. Refresh rates are 1920 Hz and 3840 Hz with Neutrik power cables and data connectors to join the panels together.

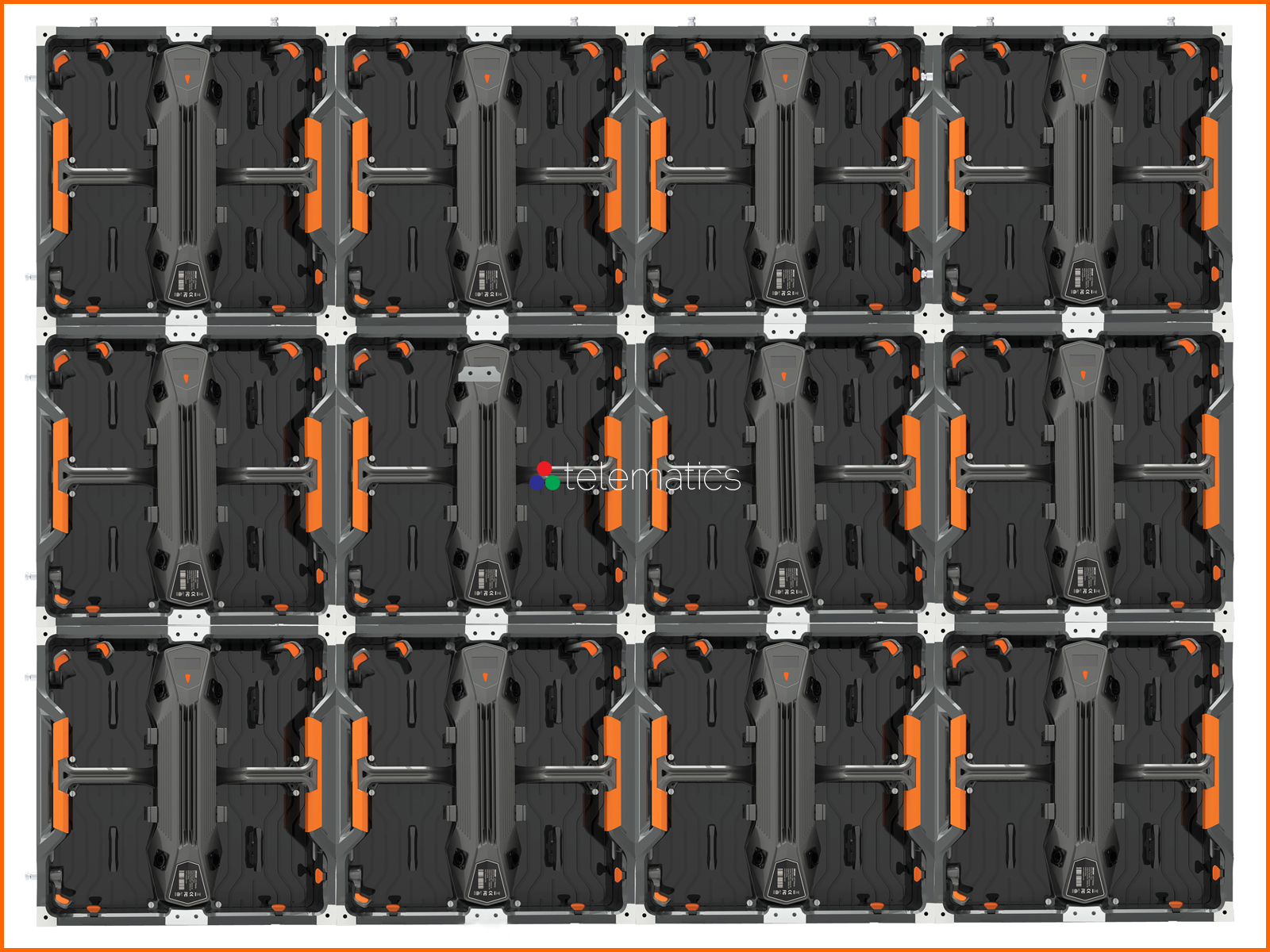

Install the Series X to a frame using the 4 corner anchors or assemble the panels using hanging bars or floor supports. Our technicians will provide mechanical drawings to create a steel frame locally or one can be built and shipped with your order.

Media is handled by any of our NovaStar controllers. If a network of displays is being deployed, content can be centrally-administered through an annual NovaStar VNNOX cloud publishing account.

The Series X has had huge success around the world over the past few years. We'd love to name-drop like crazy, but nobody likes a show-off.

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 19 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavor to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Cool Photos

A picture is worth a thousand clicks.

There are not more than five primary colors, yet in combination they produce more hues than can ever been seen.~ Sun Tzu

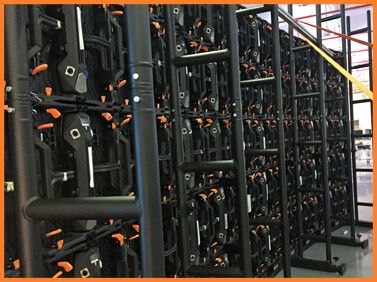

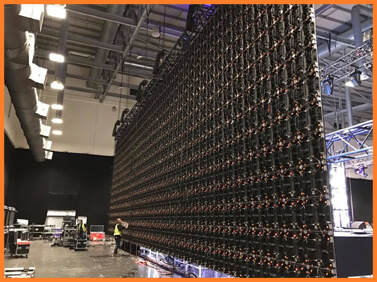

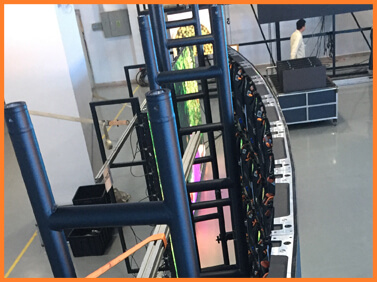

Series X Photos · Floor Support ⁽⁹⁾

Series X

Series X

Series X

Series X

Series X

Series X

· 2 ~ 5 year factory warranty

Series X

· our most popular panel

Series X

· wired · wireless · 4G

Series X

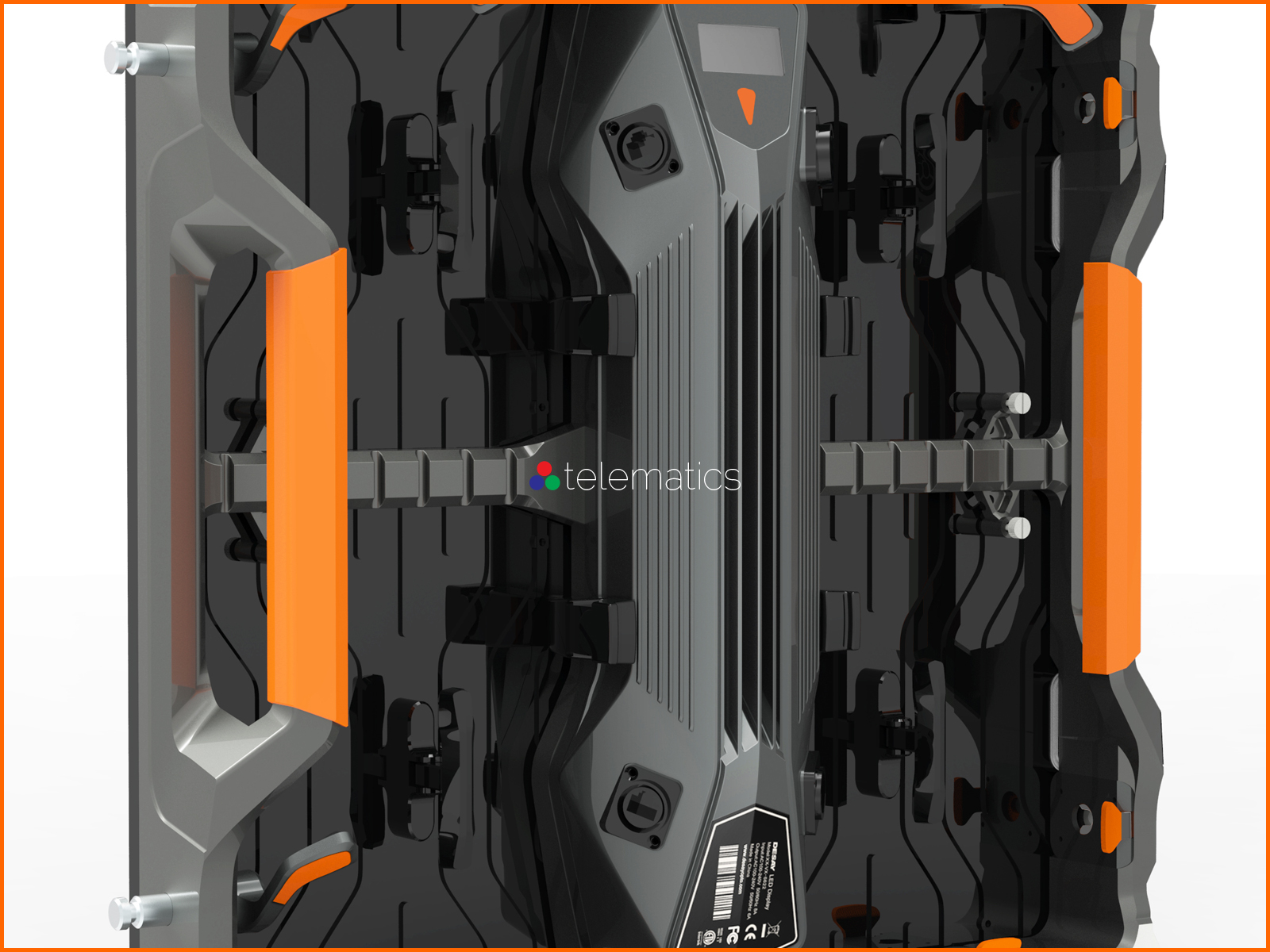

Series X Photos · Close-Up ⁽¹⁵⁾
