Look out print media.

We have a new poster child.

Pixels

Pixel to pixel spacing begins at an impressive 1.99 millimeters to create a display resolution of more than
250,000 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series A1.9 looks great from just 2 meters away.

Dimensions

The Series A is a precision aluminum panel that weighs approximately
35 kilograms with XYZ dimensions of
1982 * 614 * 40 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 78 * 24 * 2 inches
and a solid 77 pounds.

Viewing

Display brightness levels extend from 800 cd/m² to 1100 cd/m².
Screen refresh rates are set at 1920 Hz for smooth video transitions.
Off-axis viewing is exceptional at 70° which means that pretty much everyone in the room can see the Series A whether coming or going.

Performance

Colors are amazing with levels of red¹³ * green¹³ * blue¹³ that provide for a combined 549 billion colors and a silky smooth 8,192 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

Power

Rated power consumption is a modest 172 ~ 206 Watts per square meter and up to 590 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

The Series A can be ordered with floor, ceiling or wall mounts. With the fully-integrated the Series A, all you really need is a place to plug it into and a digital file to entertain your audience. And in case they get all touchy-feely, we've got your front with a layer of polycarbonate.

Specifications · Desay Series A

An exquisite standalone poster. Plug in and play on.

Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series	A1⁹⁹	A2⁵⁷
Pixels ^{mm · meters}
Resolution ^{· ctc distance · mm}	1.99	2.57
Resolution ^{· per linear meter}	501	390
Resolution ^{· per square meter}	251255	151825
Dimensions ^{mm · (inch)}
Width ^{· portrait}	614 ^(24.2)	614 ^(24.2)

Height ^{· portrait}	1982 ^(78.0)	1982 ^(78.0)

Depth ^{· at panel edge}	40 ^(1.6)	40 ^(1.6)
Depth ^{· at power box}	40 ^(1.6)	40 ^(1.6)
Weight ^{kilo · (pound)}
Poster	35 ^(77.1)	35 ^(77.1)
Viewing
Brightness ^{· candela/m²}	800	1000

Refresh ^{· hertz}	1920	1920

Angle ^{· 50% brightness}	70° ↔ 70°	70° ↔ 70°
Angle ^{· 50% brightness}	70° ↕ 70°	70° ↕ 70°
Performance
Colors ^{· rgb · bit depth}	2¹³	2¹³
Control ^{· brightness levels}	255	255
Lifetime ^{· 50% brightness · years}	11.4	11.4
Power ^{square meter}
Watts ^{· (average draw)}	590 ^(35%)	492 ^(35%)

Voltage ^{· VAC · adaptable}	100 ⌁ 240	100 ⌁ 240
Certifications
Regional ^{· inquire}	ETL	UL	CE	EMC	RoHS	FCC

Installation
Wall ^{· portrait · landscape}	⬚	⬚
Ceiling ^{· portrait · landscape}	⭭	⭭

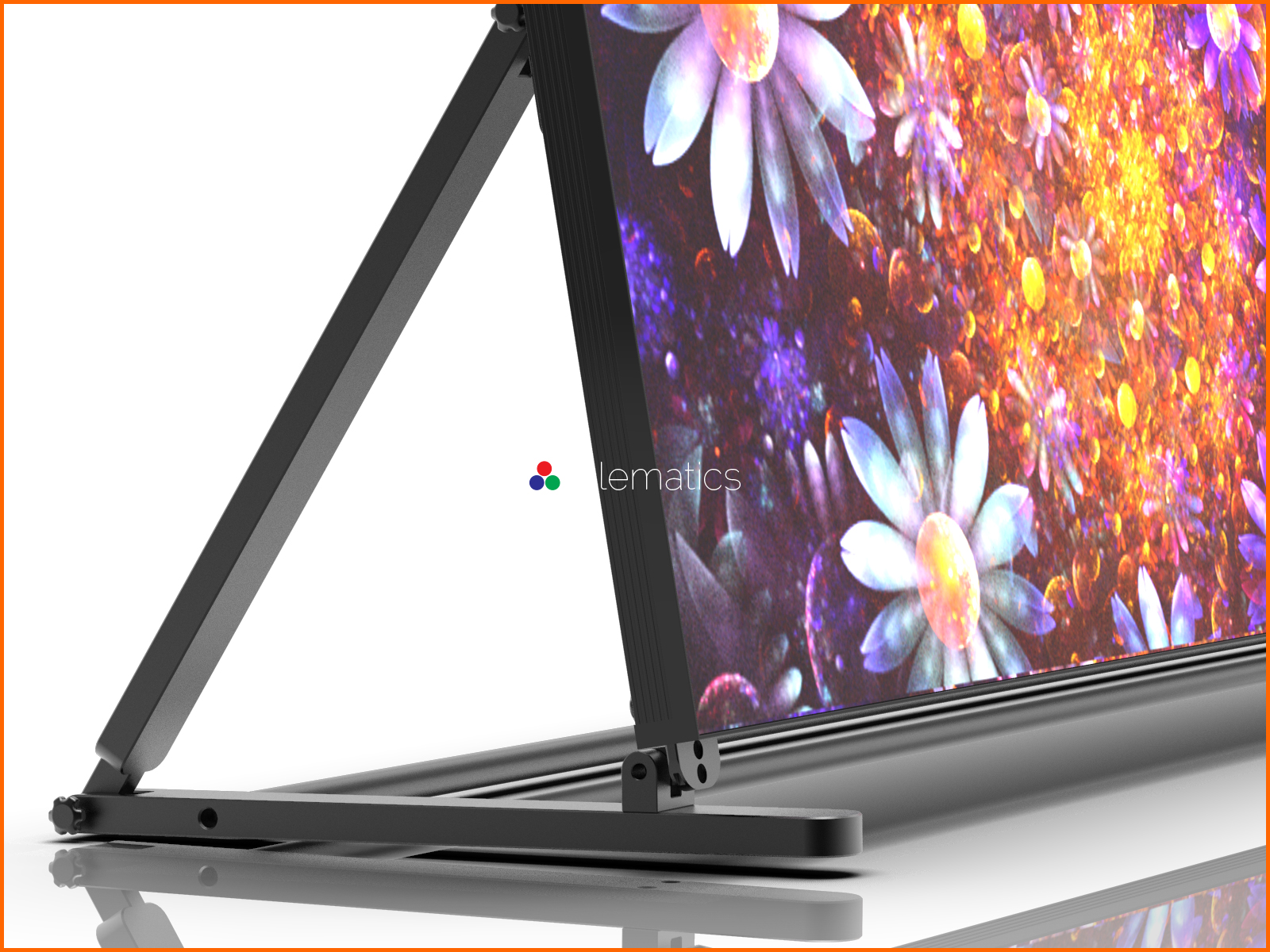

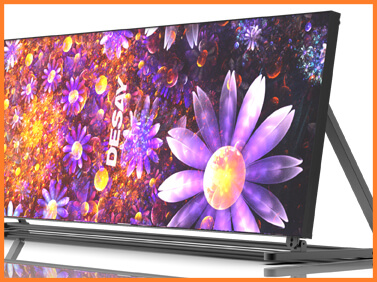

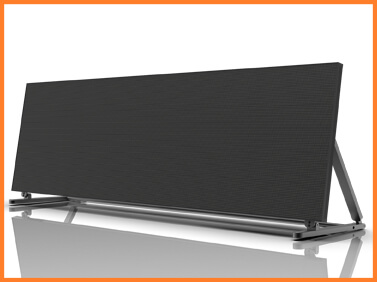

Floor ^{· adjustable stand}	⎋	⎋

IP Code ^{· front · rear}	41 · 30	41 · 30
Operating ^{· celsius · (fahrenheit)}	-10 ⁽¹⁴⁾ · 40 ⁽¹⁰⁴⁾	-10 ⁽¹⁴⁾ · 40 ⁽¹⁰⁴⁾

Certifications

Desay Series A	ETL	FCC


Fine Print

Specifications	Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty	Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty	The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...

Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu

About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Desay Series A

The Series A is a new product category that has emerged over the past few years.

This is an LED poster that needs only your digital media and a power source and is ideally suited for indoor public display in retail locations that demand ultra-fine to fine-pixel resolution for close-proximity viewing.

At roughly the height and width of an exceptionally tall person, a single Series A poster will command the attention of anyone walking by or through a shop or restaurant. An acrylic overlay helps protect the Series A from a little too much attention from the hands-on crowd.

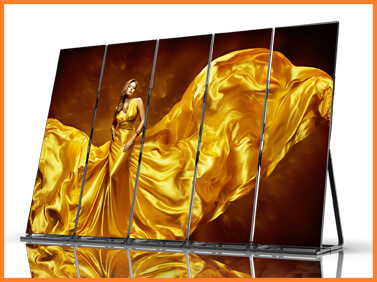

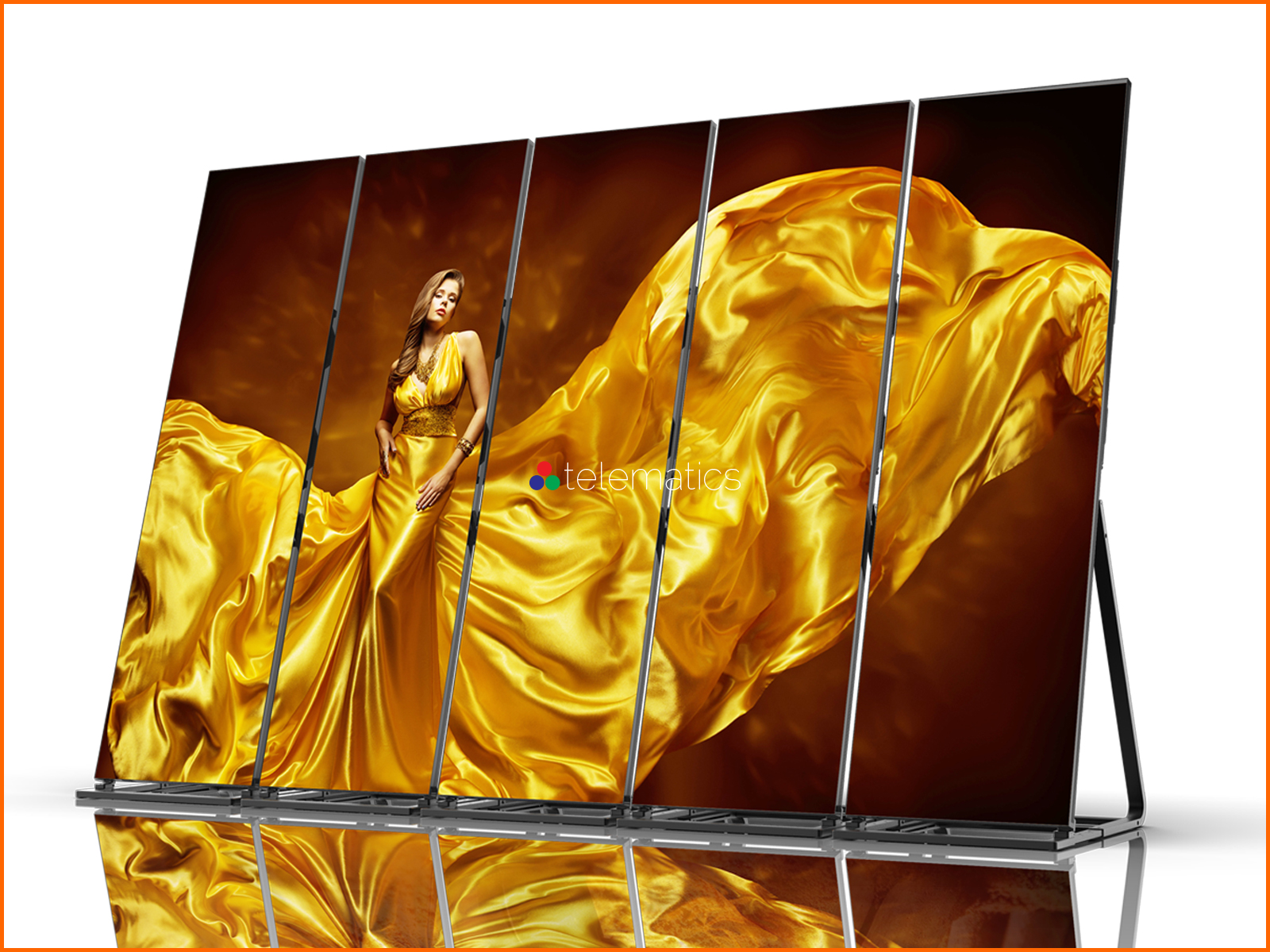

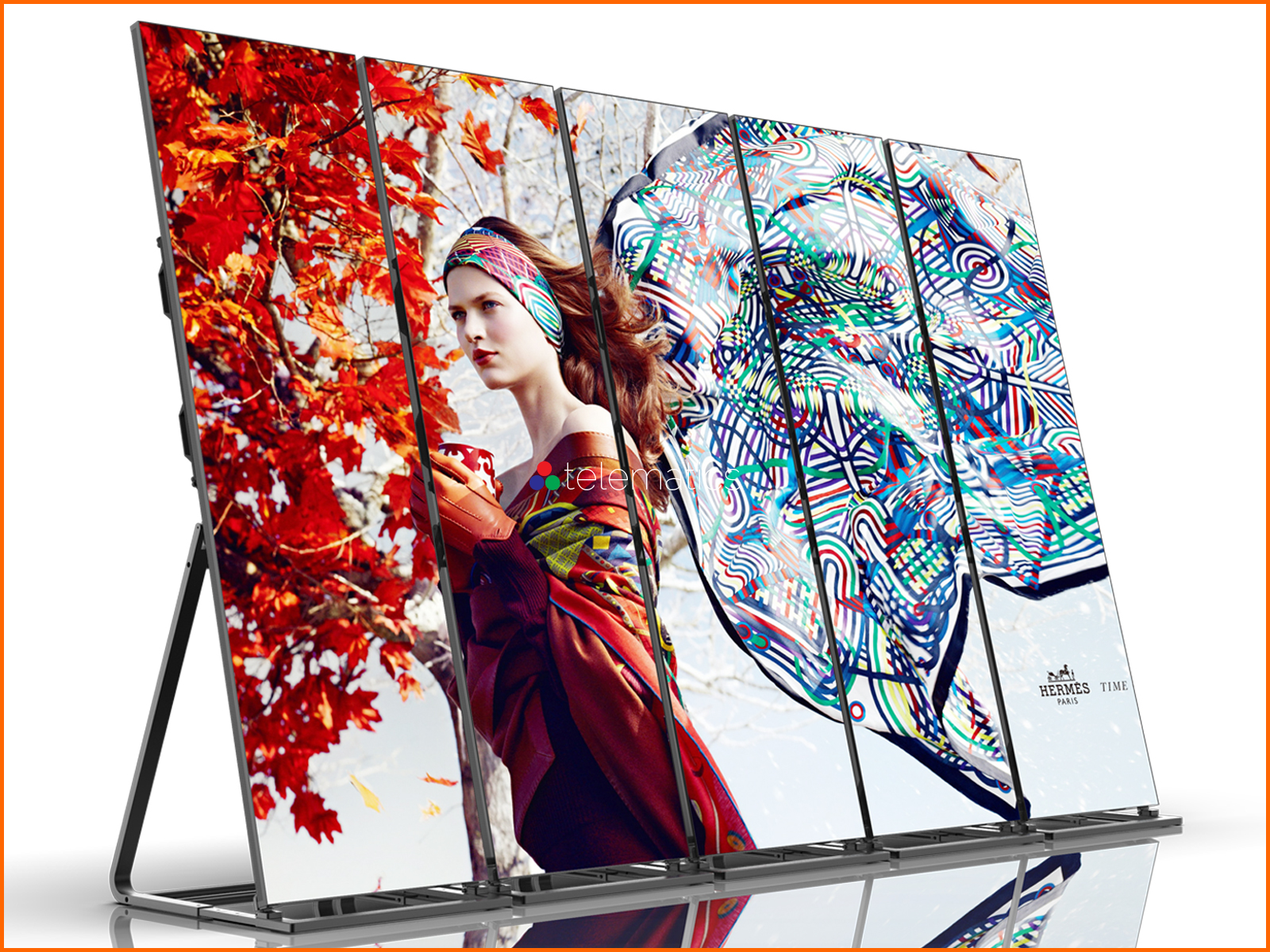

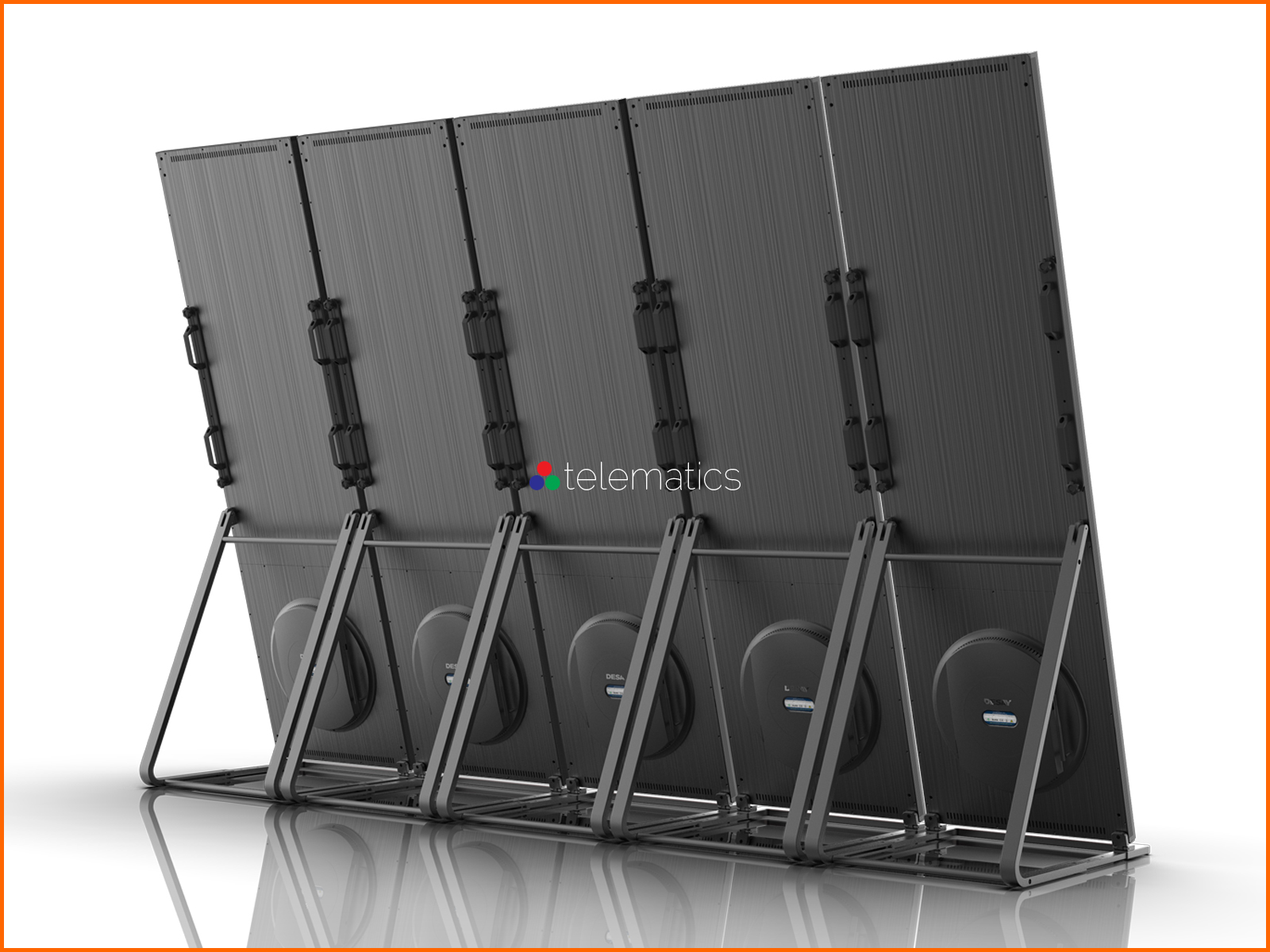

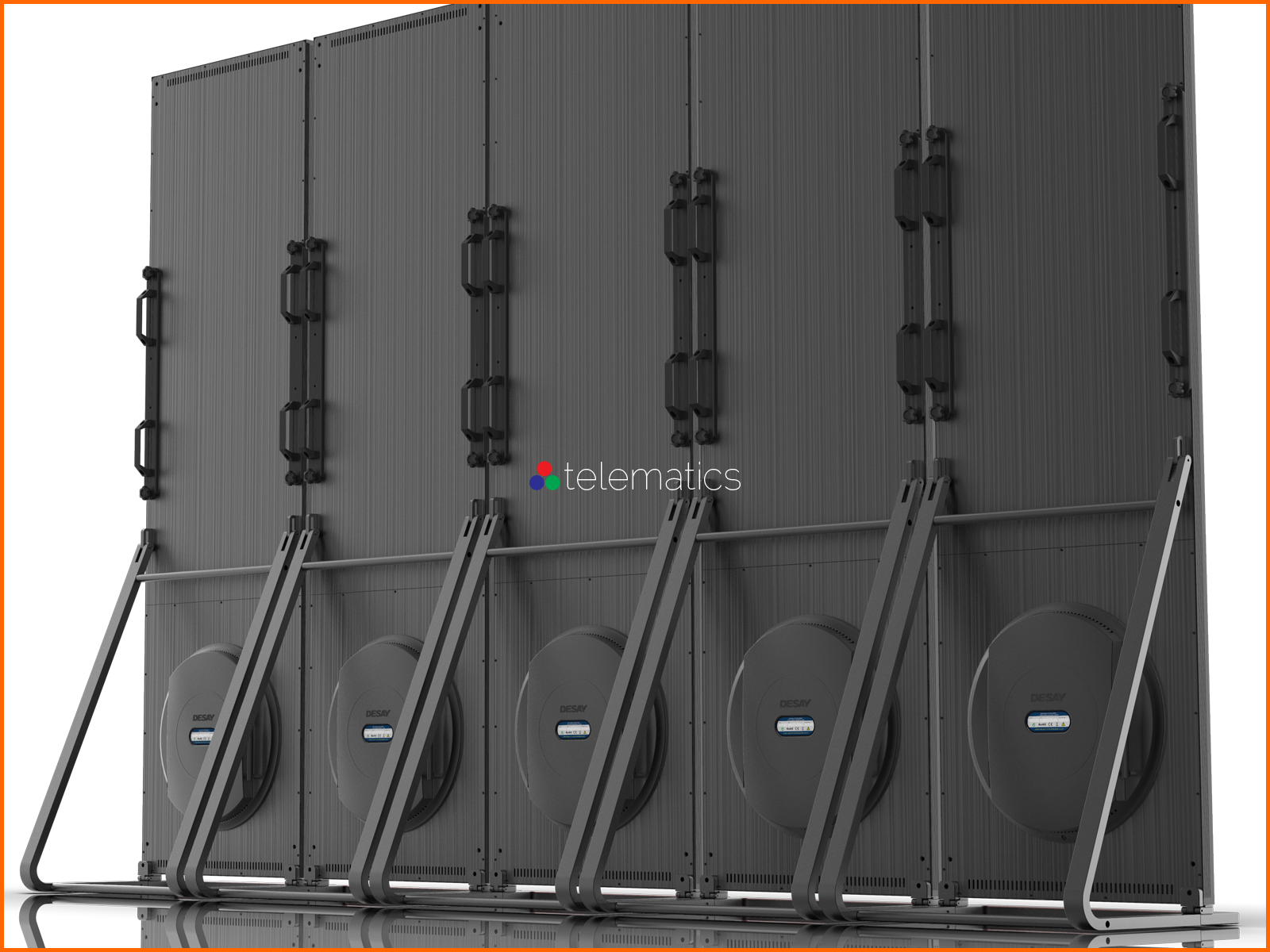

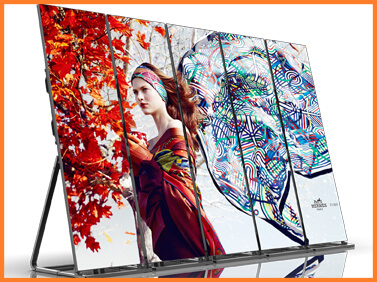

Pixel density ranges from 151,825 and increases to 251,255 pixels per square meter. Refresh rates are a smooth 1920 Hz in panels that can be positioned alongside each other and share content like an extended desktop.

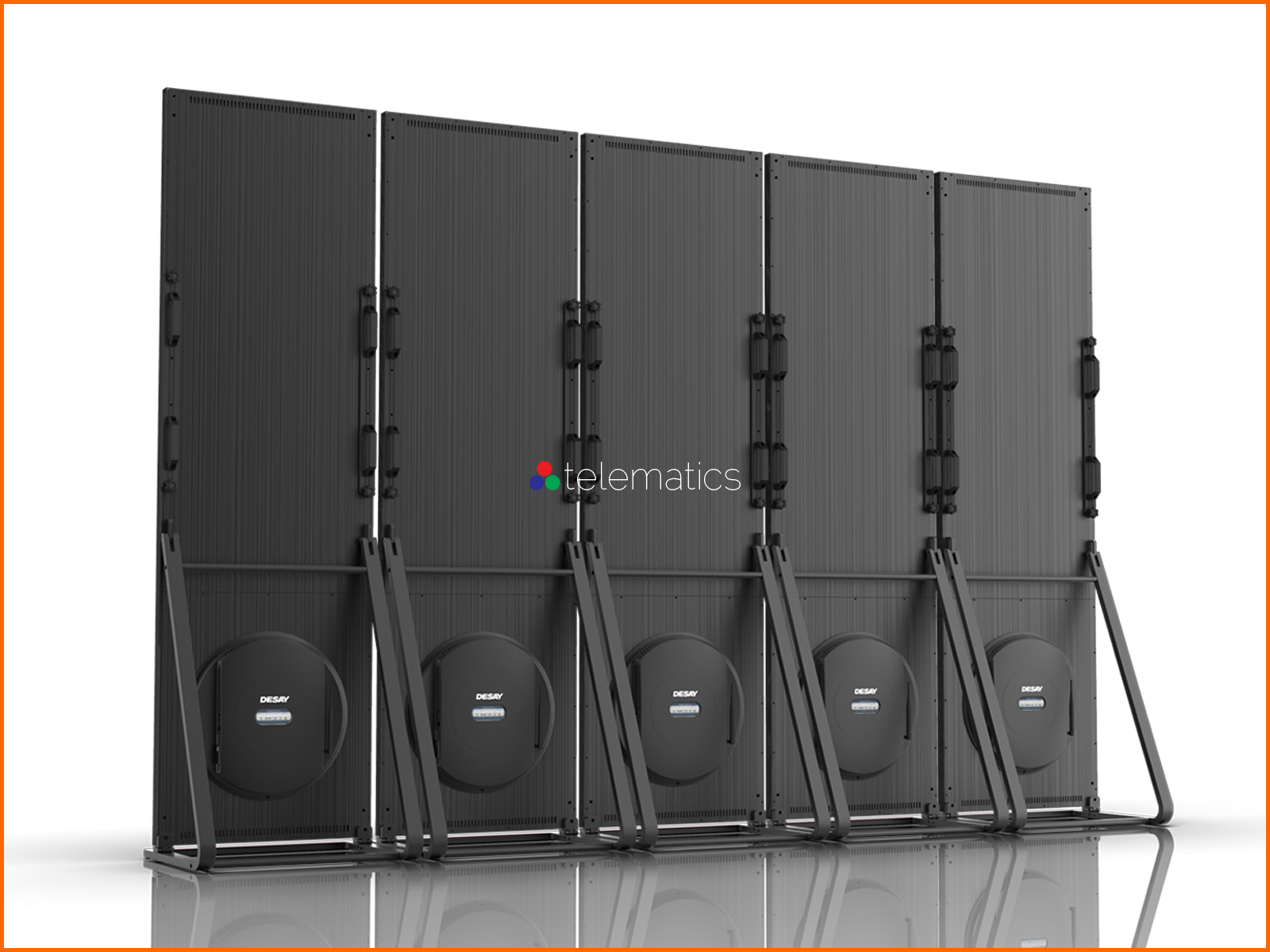

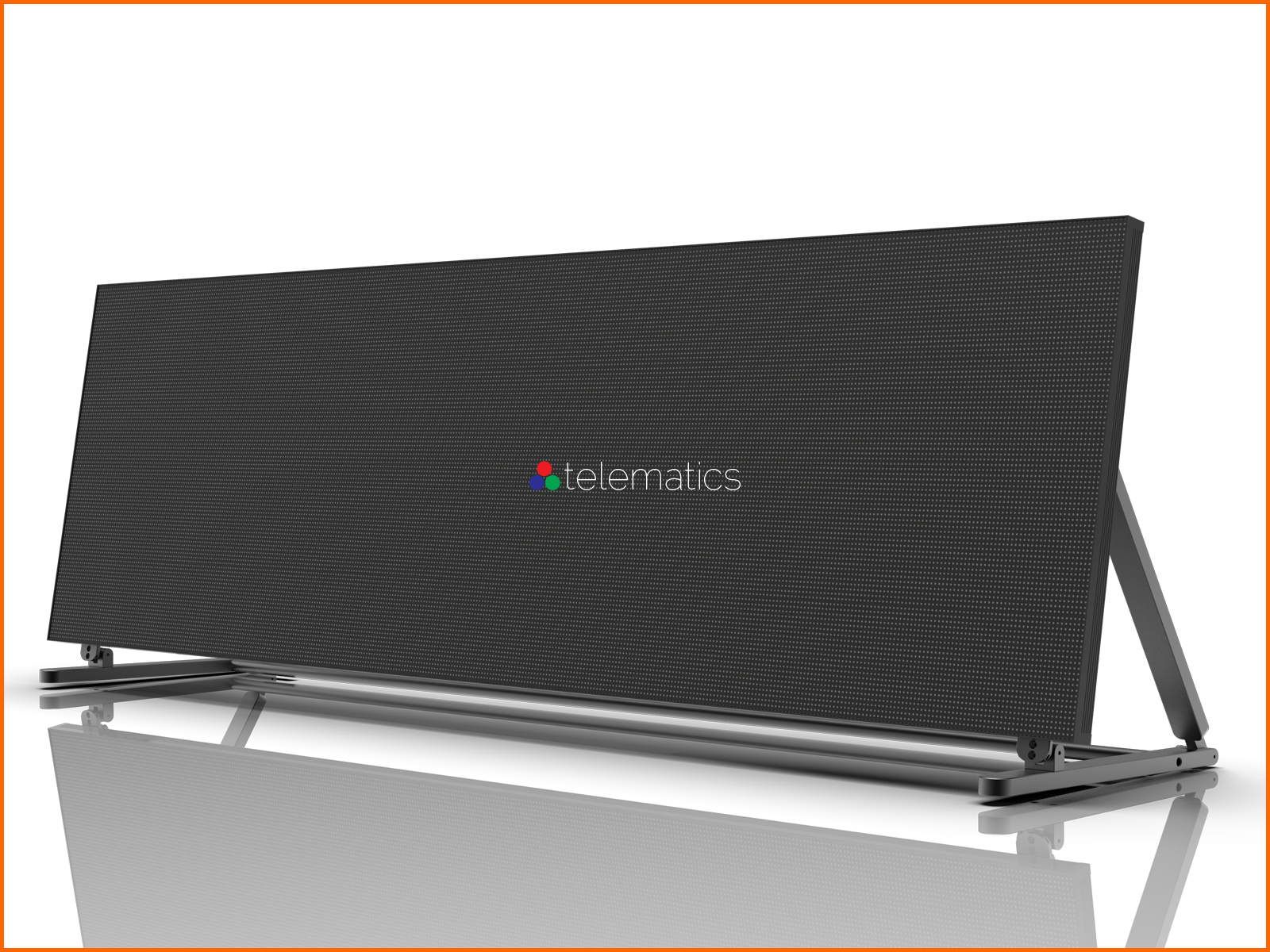

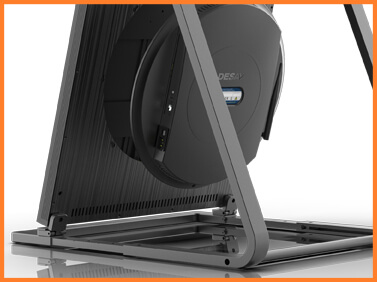

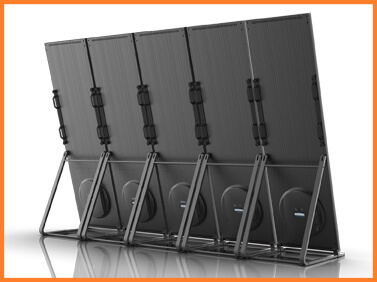

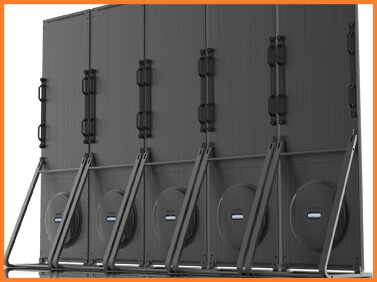

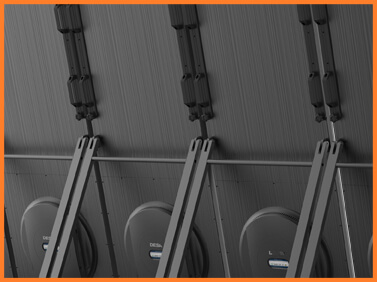

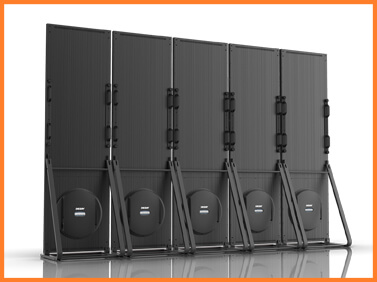

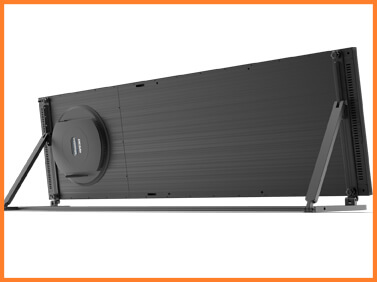

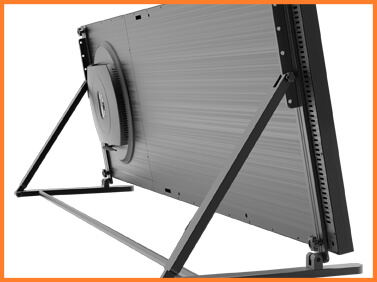

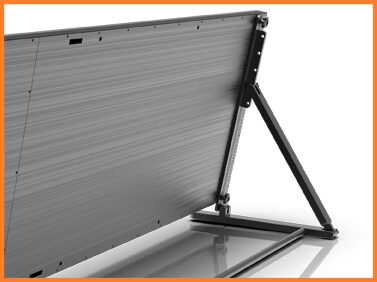

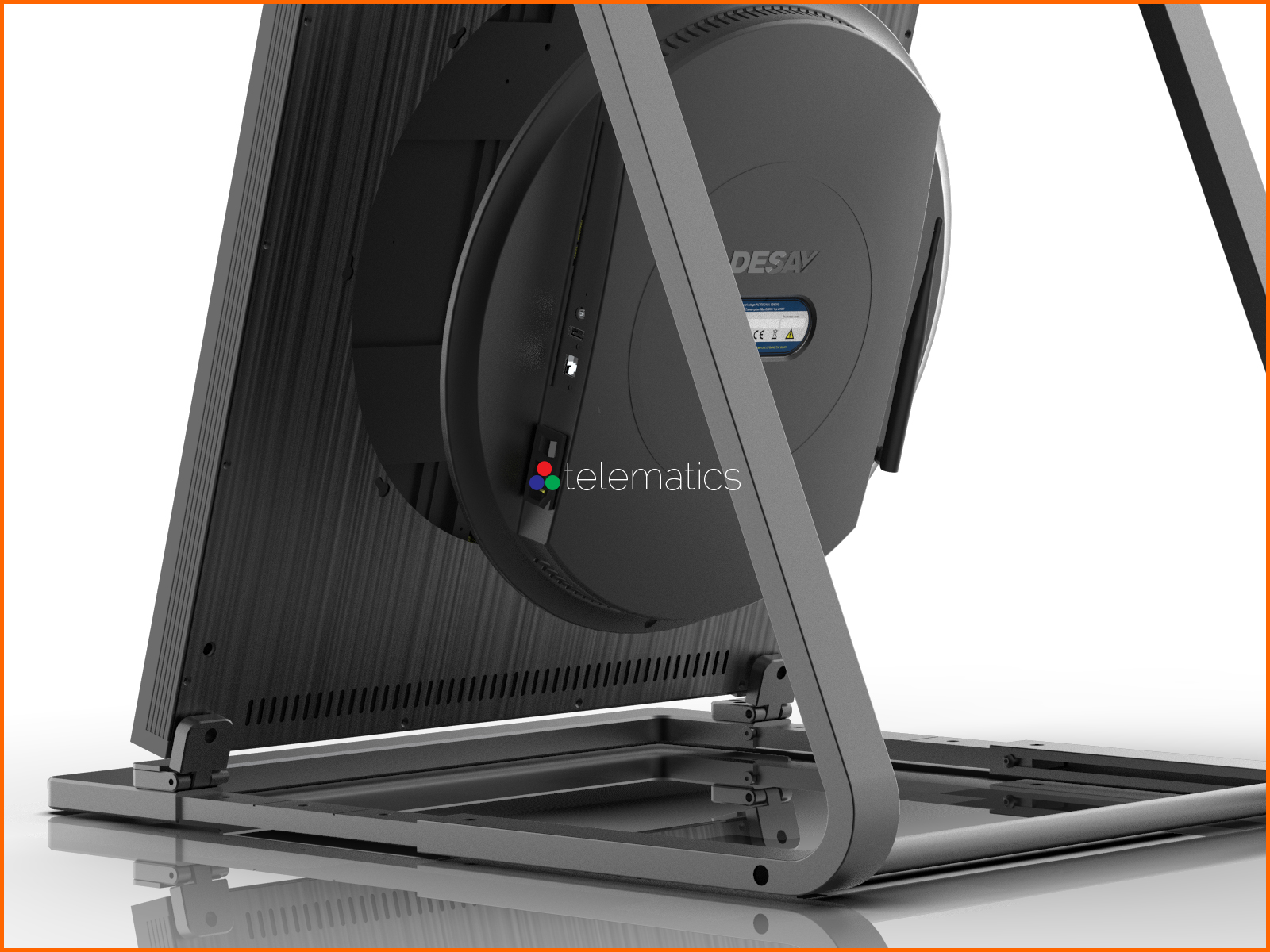

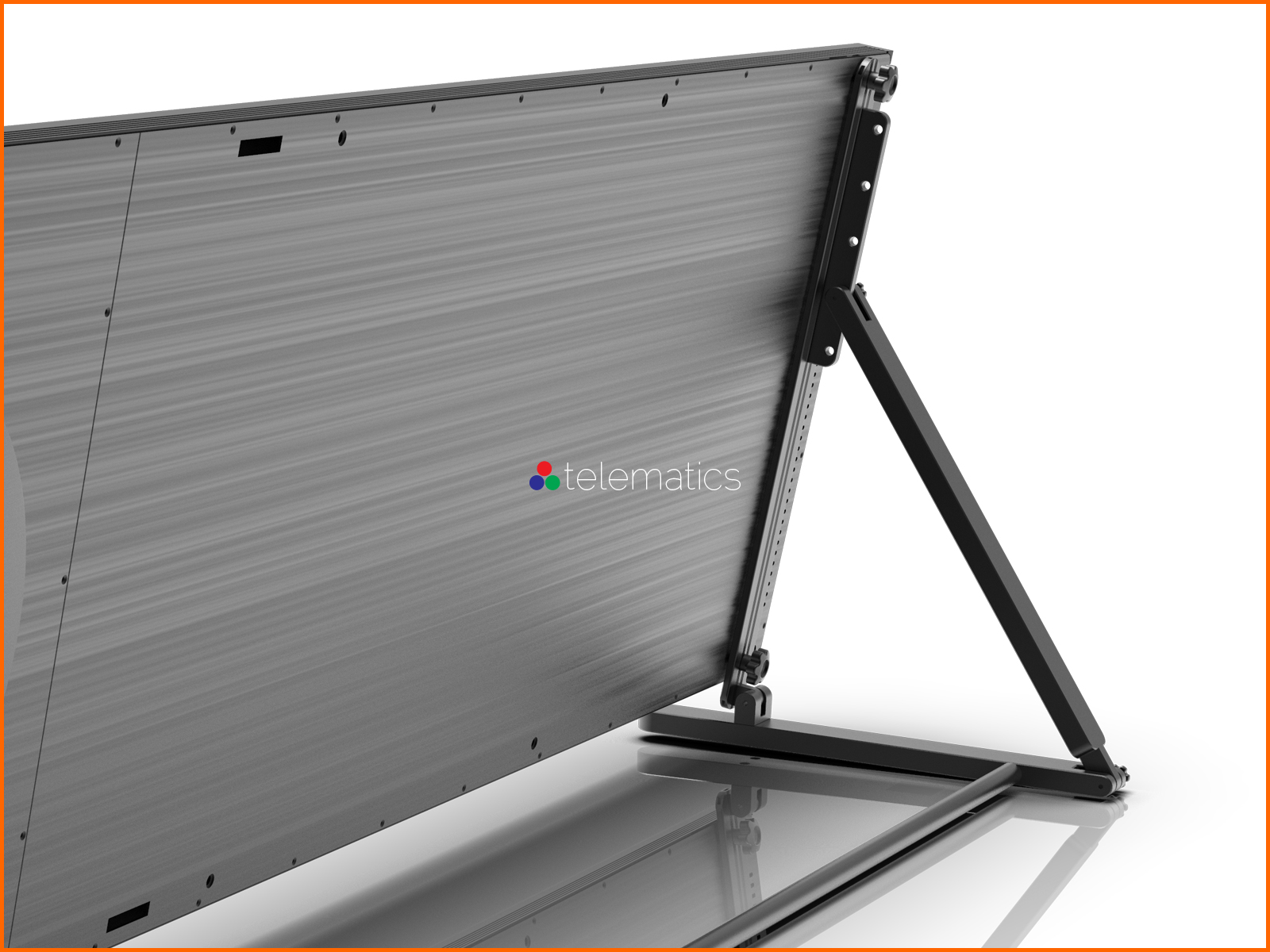

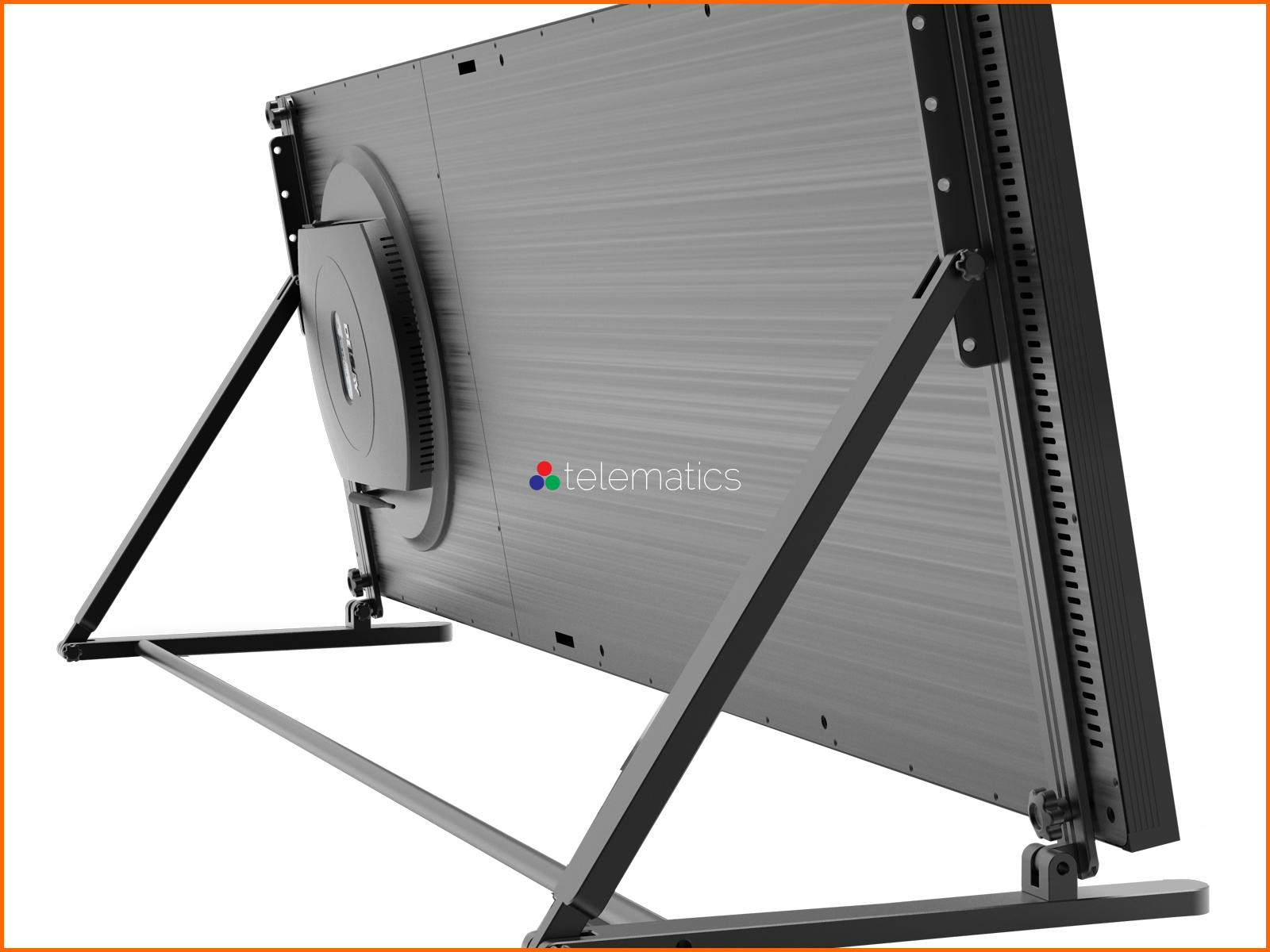

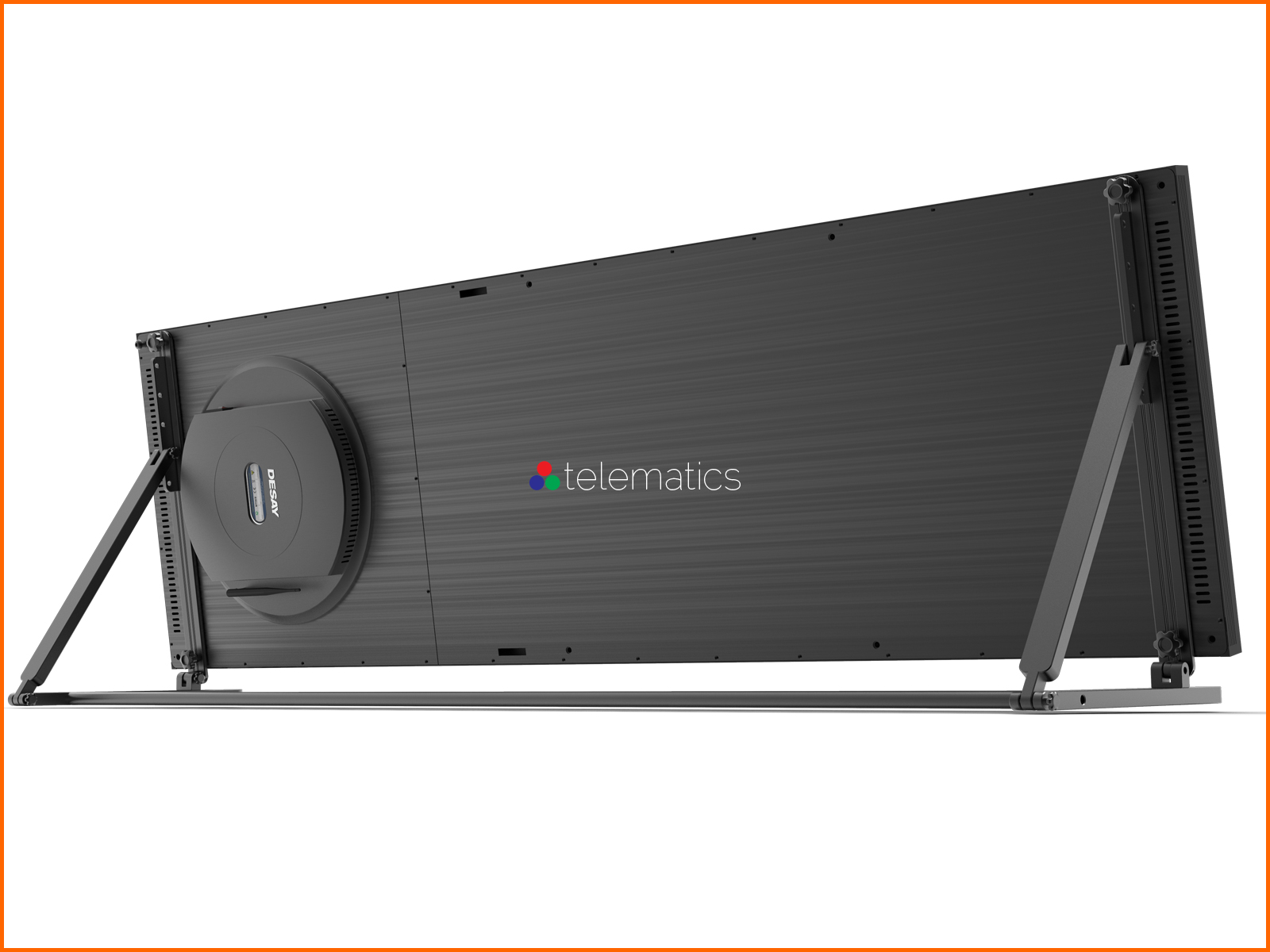

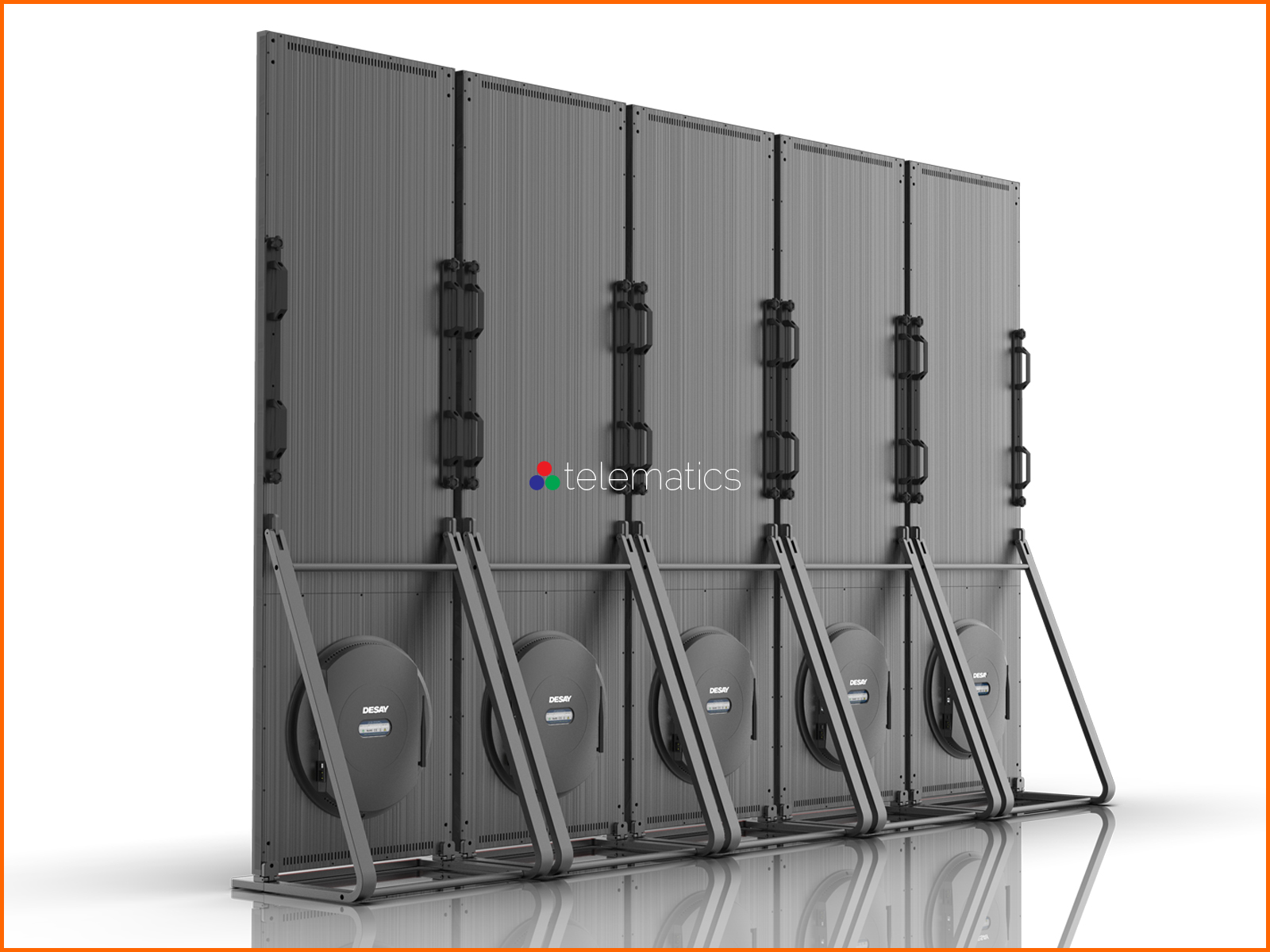

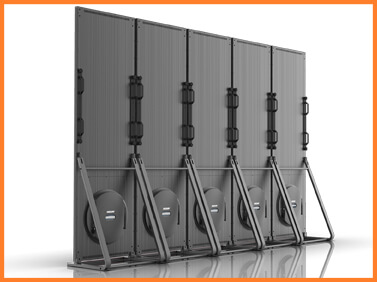

Install the Series A to a wall using 4 corner anchors or suspend it from a ceiling bracket. Choose from portrait or landscape or anything in-between. If your venue or rental department calls for something portable, check off an adjustable floor stand and a carry case to protect the Series A between shows.

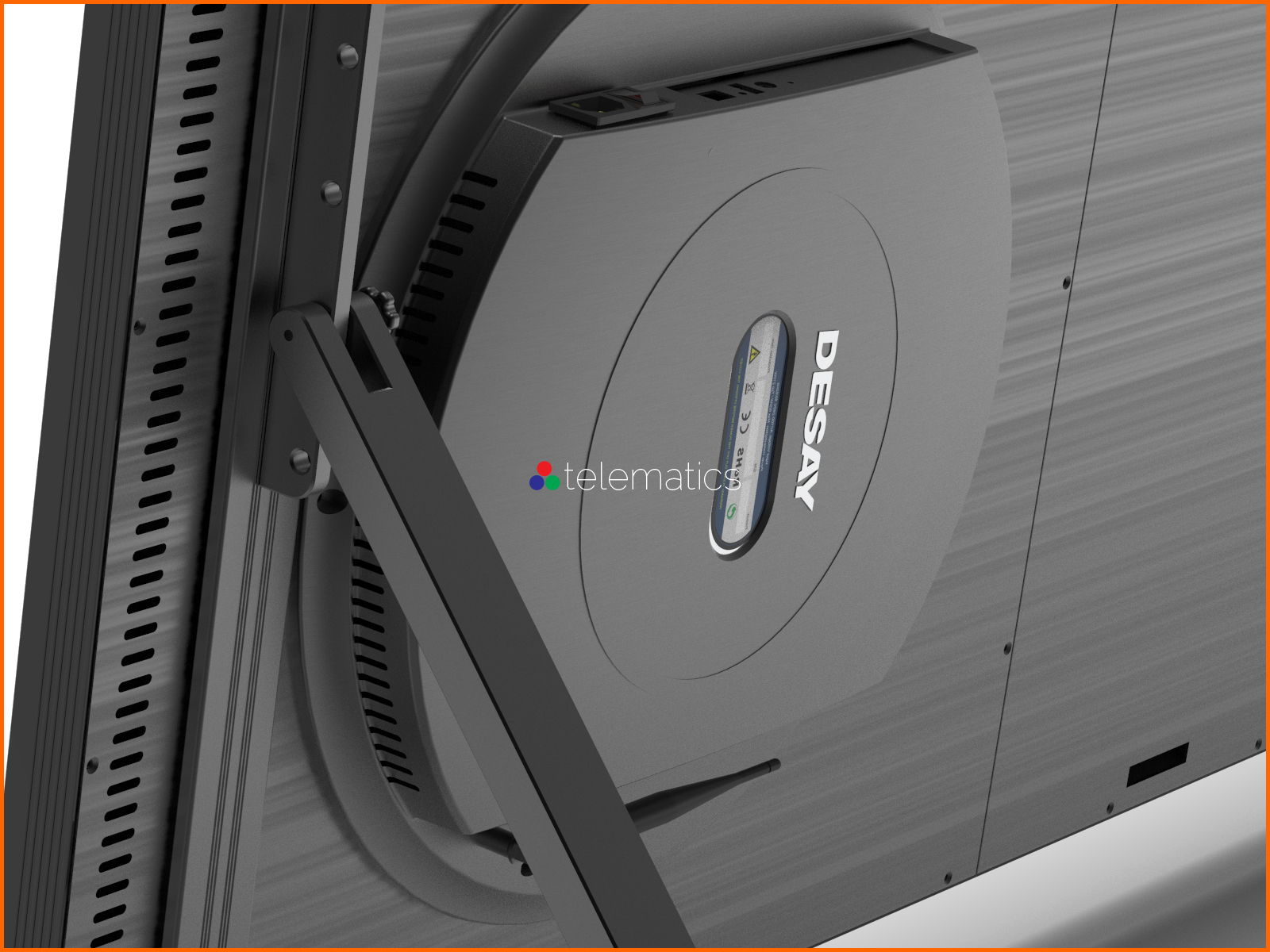

Media is handled by a NovaStar Taurus TB6 controller. That means either a LAN or WiFi connection for most applications or even 4G. Video and image files reside on an 8 GB card and if a network of displays is being deployed across the city or around the world, content can be centrally-administered through an annual NovaStar VNNOX cloud publishing account.

Investing in an LED poster will provide a predictable return for most any business that is compelled to rotate printed media through seasonal buying cycles, product promotions and sales. If no greater use of the Series A is made beyond replacing ordinary static posters, the cost of that printing and installation is known and each of those events can be used to fully amortize this purchase.

By now, you should be viewing your old static signage with the same sense of quiet resignation that someone feels after finally throwing out their fax machine. It was really great to have for all those years but now everyone just emails.

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 19 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavor to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Cool Photos

A picture is worth a thousand clicks.

There are not more than five primary colors, yet in combination they produce more hues than can ever been seen.~ Sun Tzu

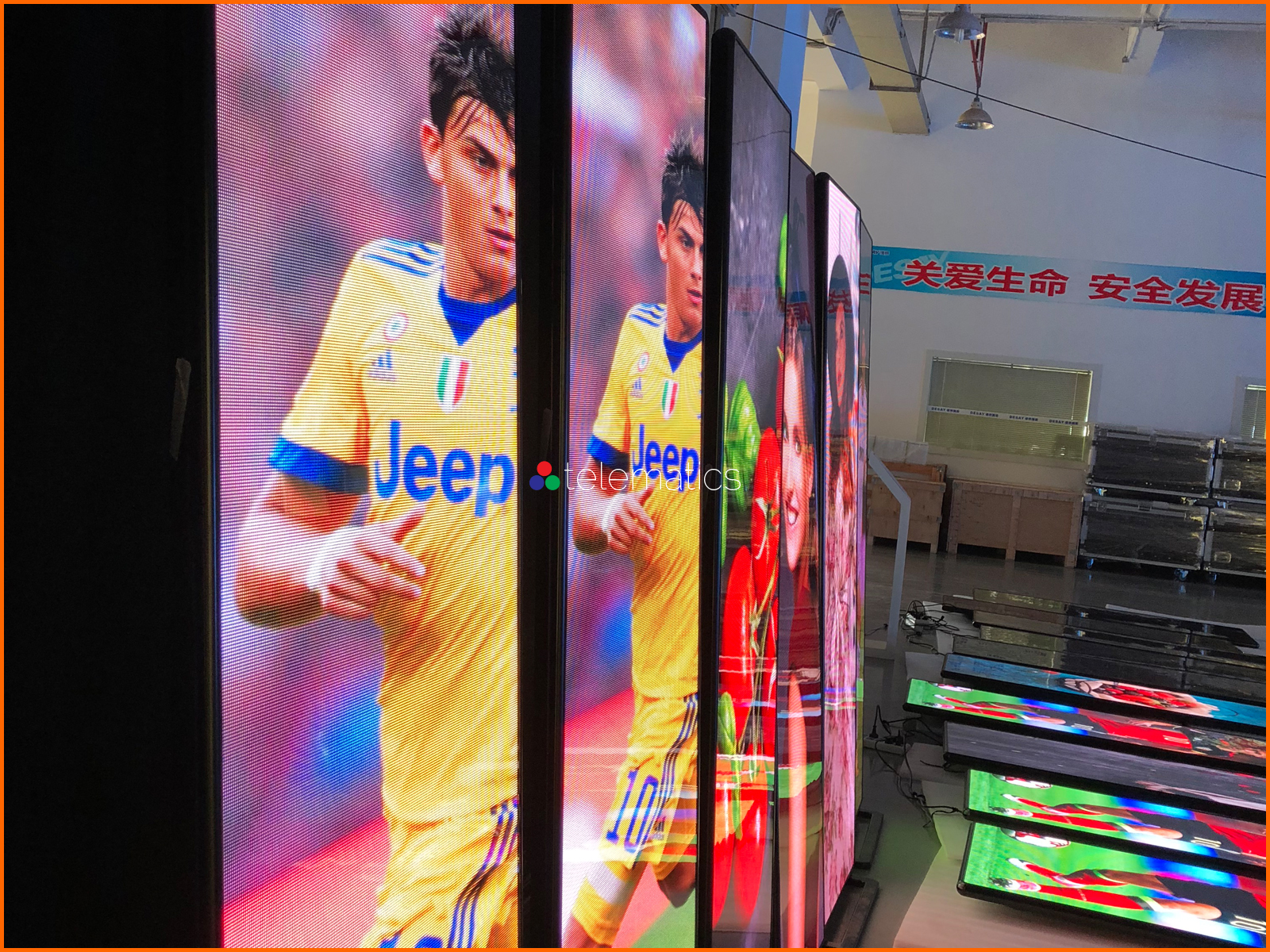

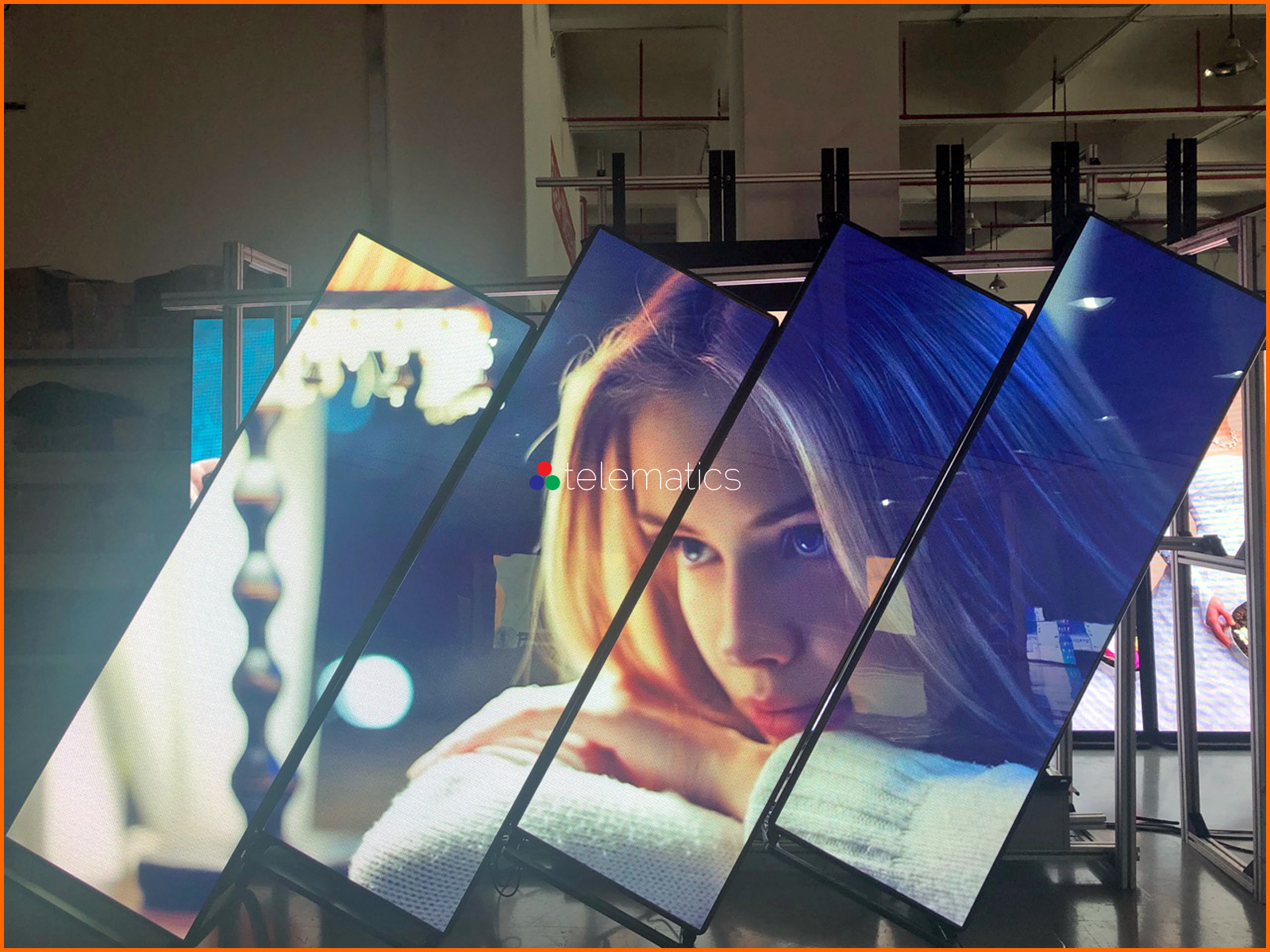

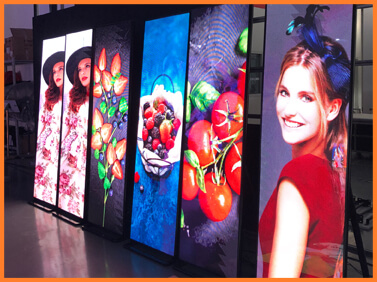

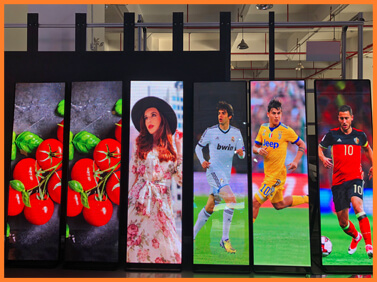

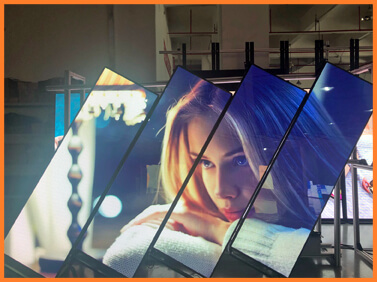

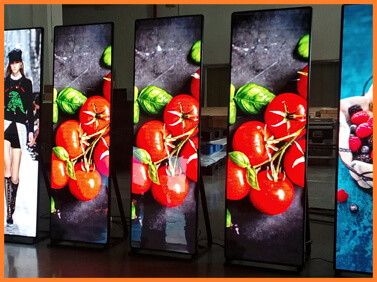

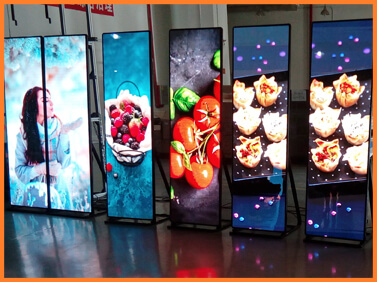

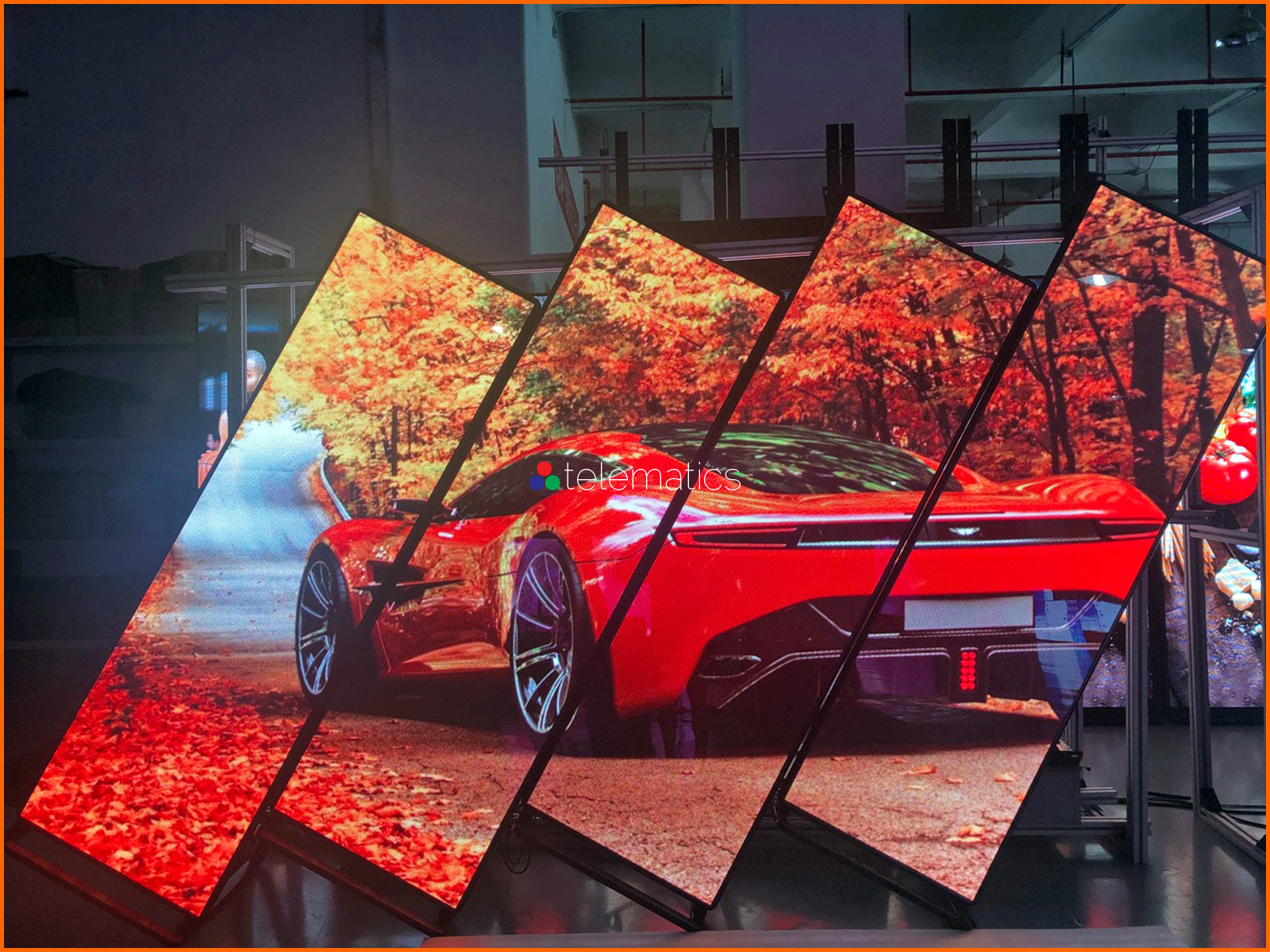

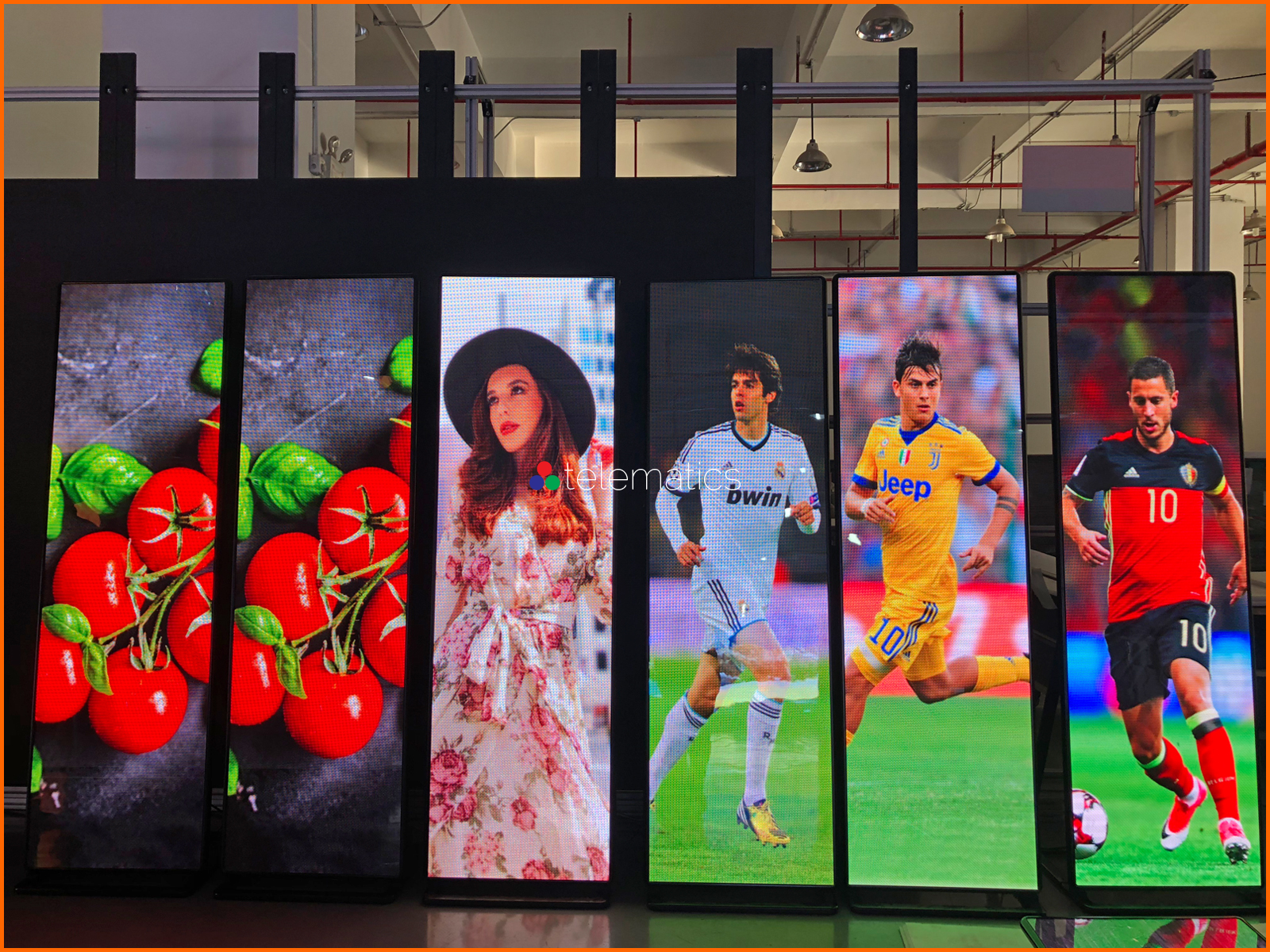

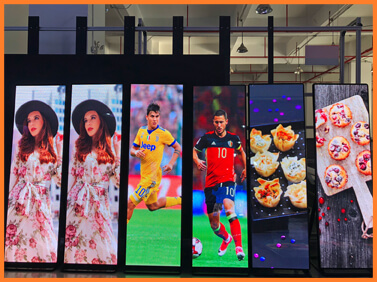

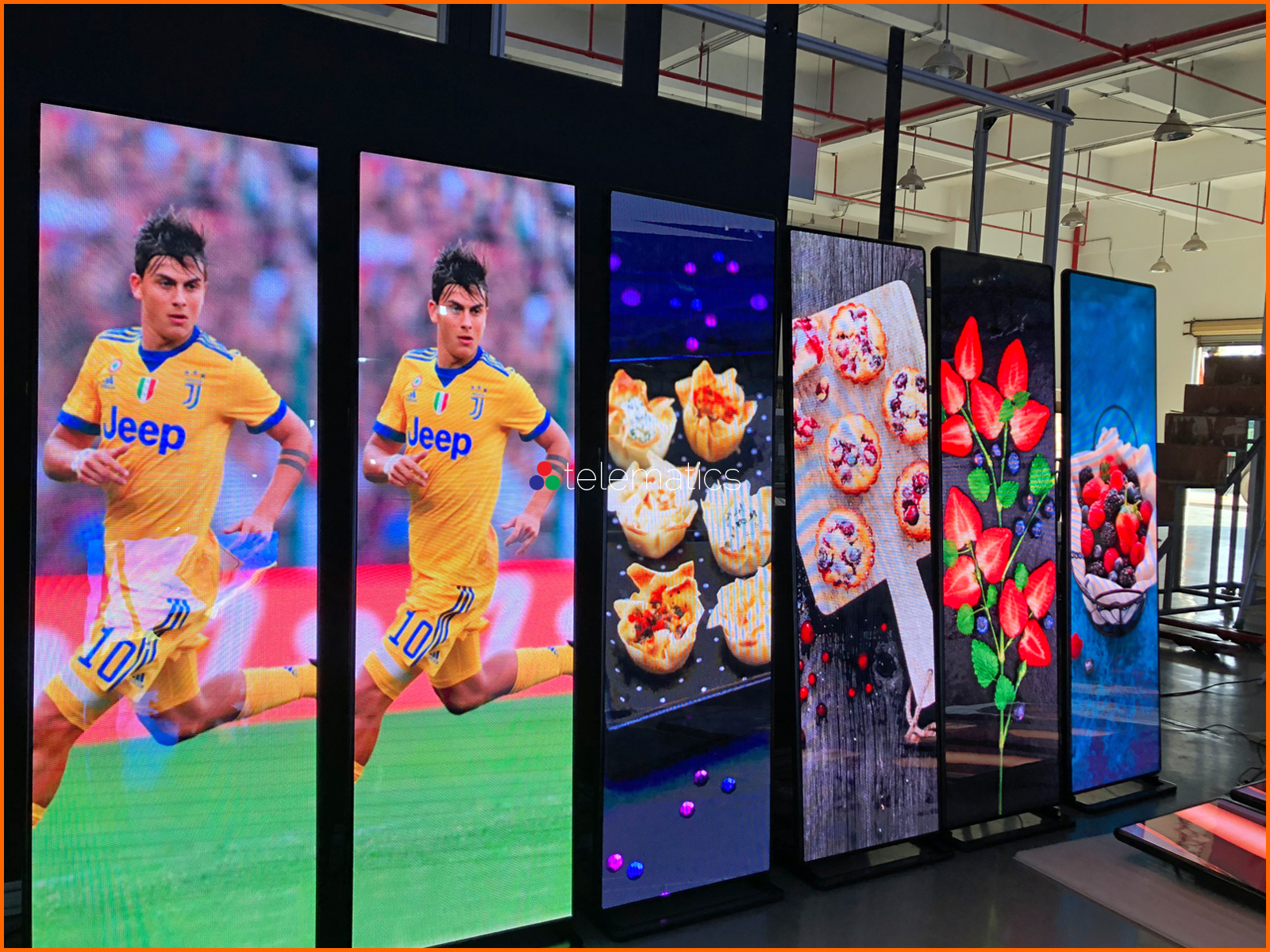

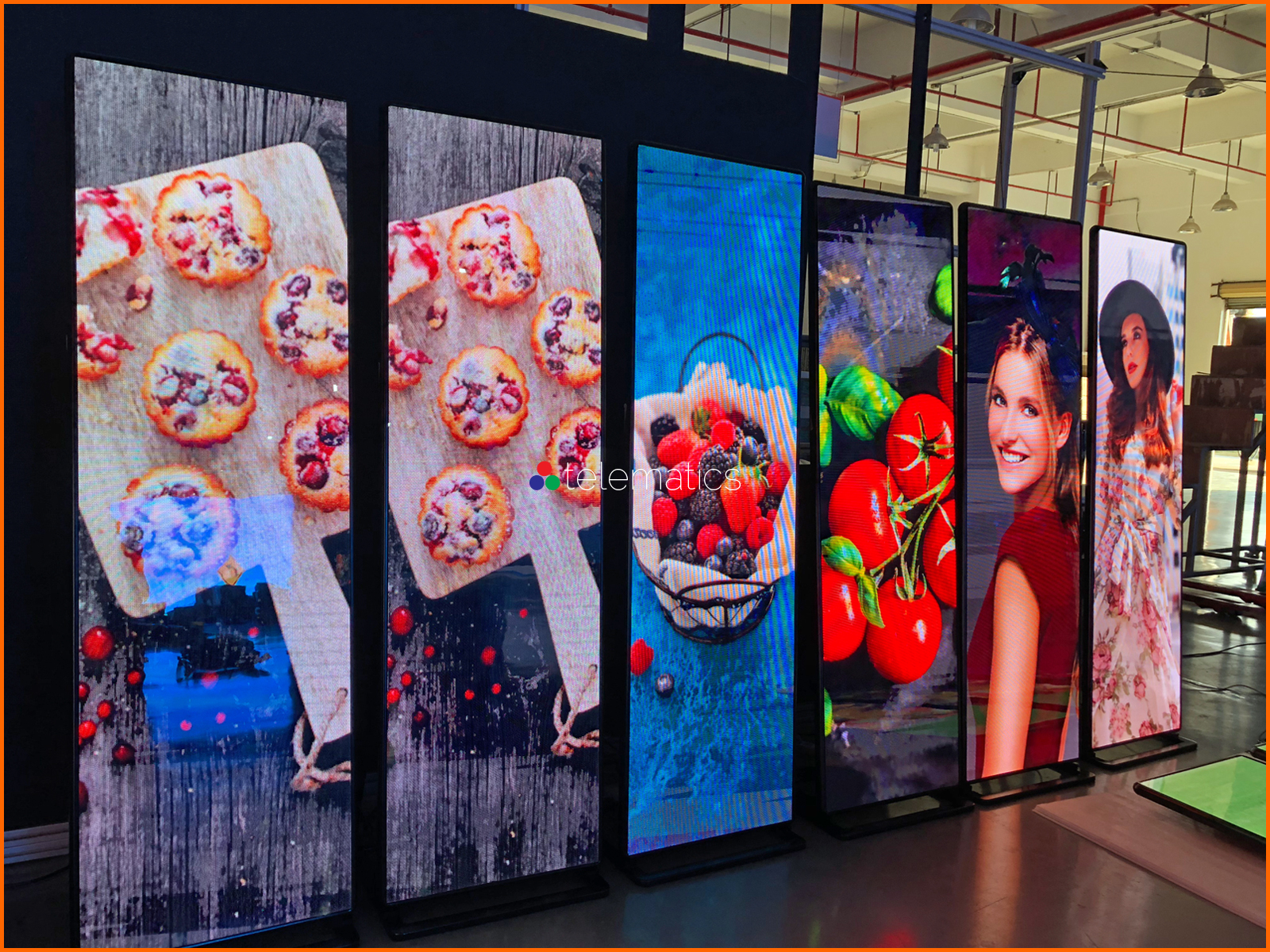

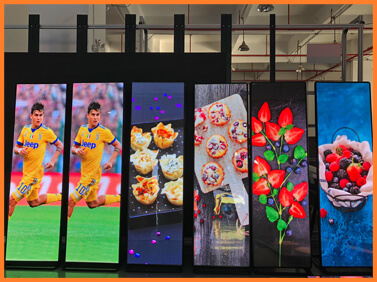

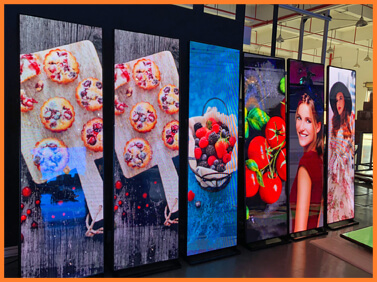

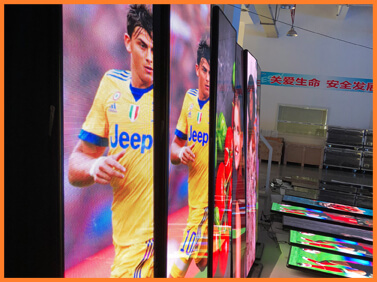

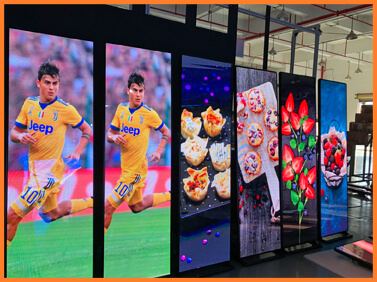

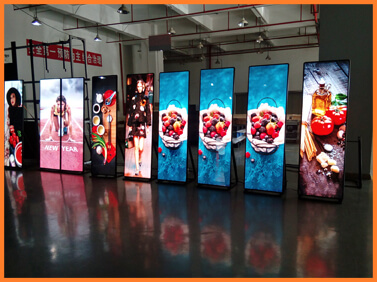

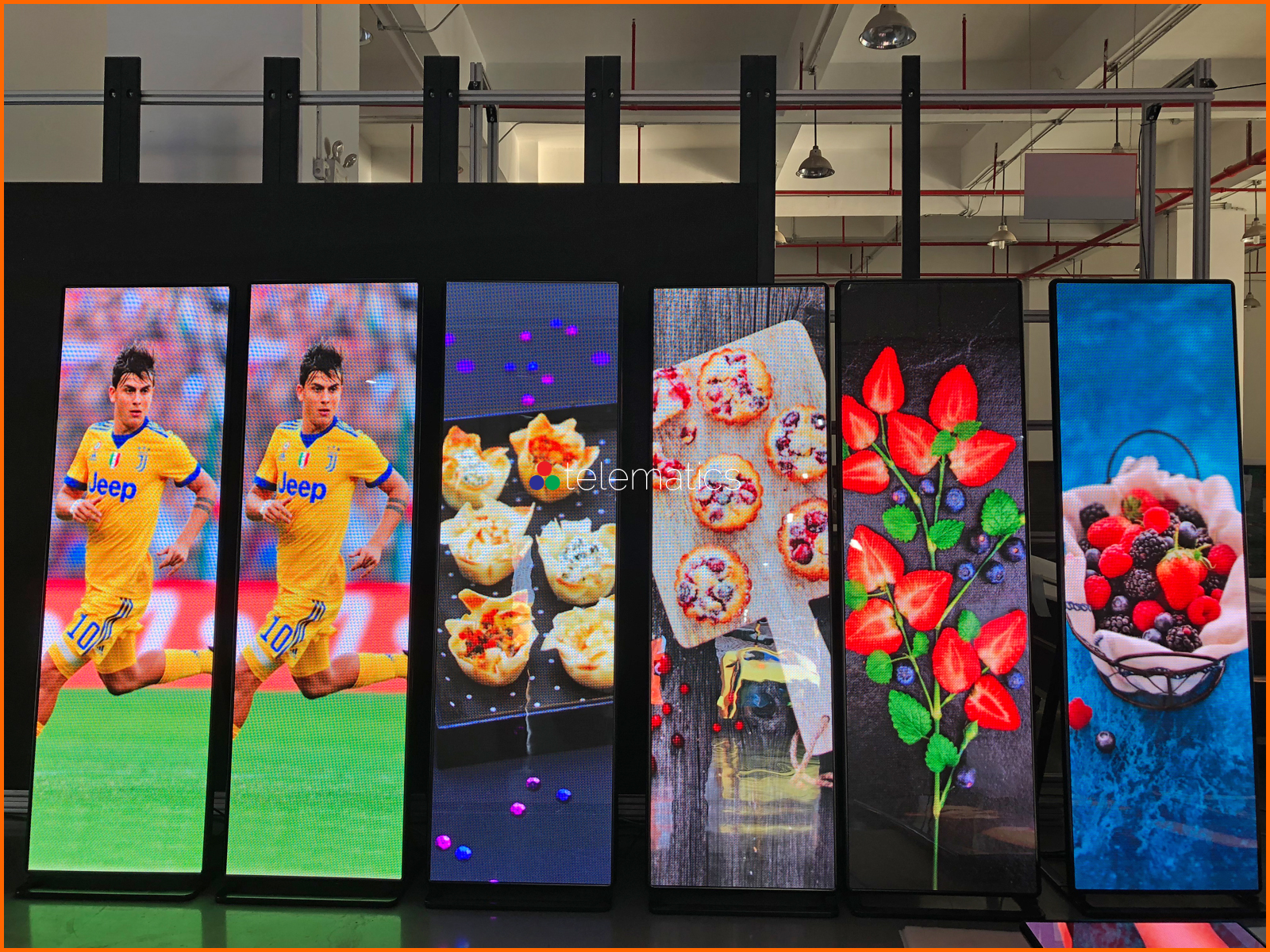

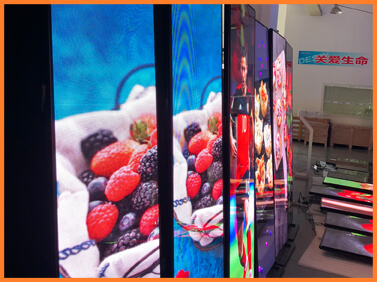

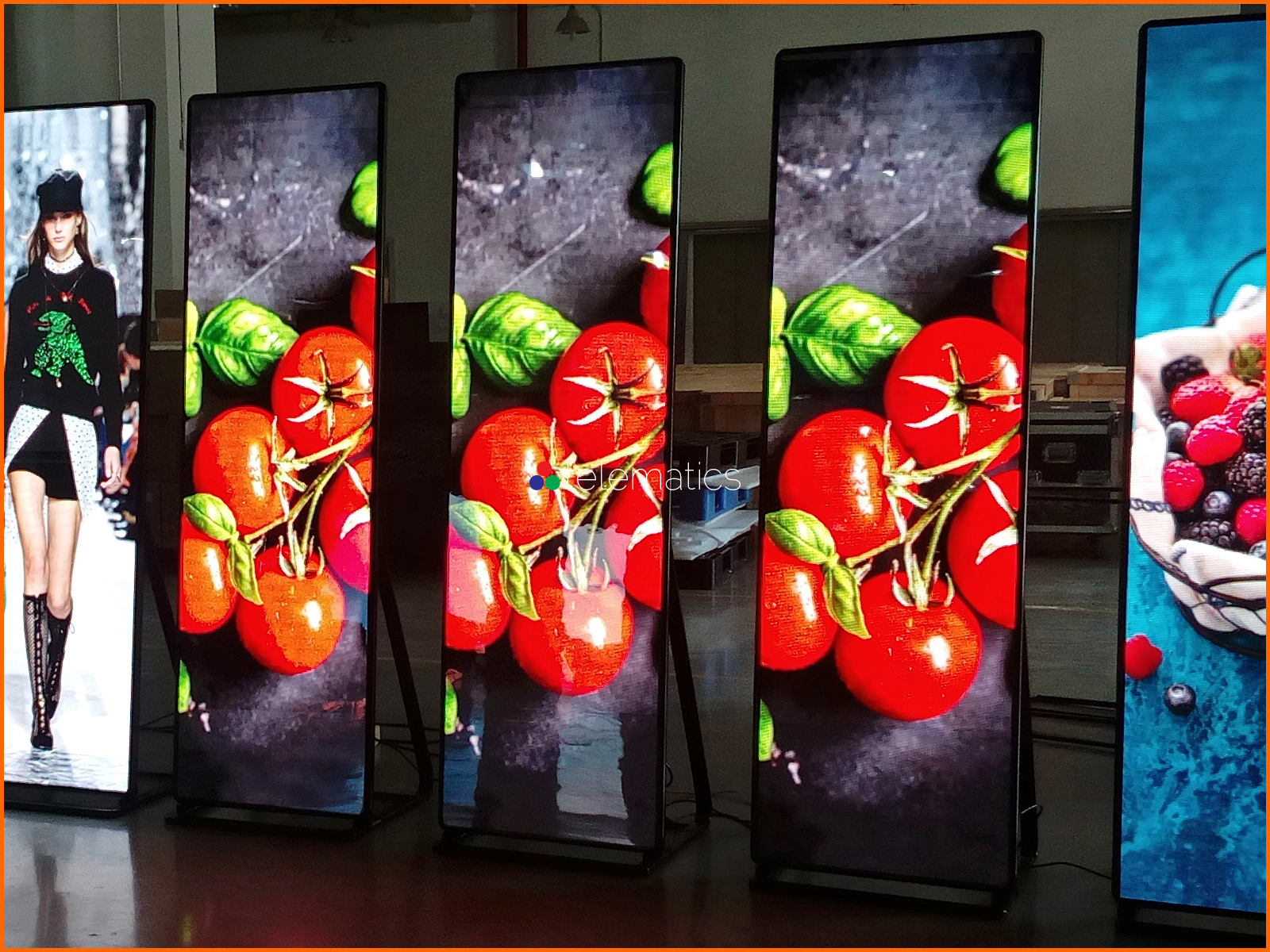

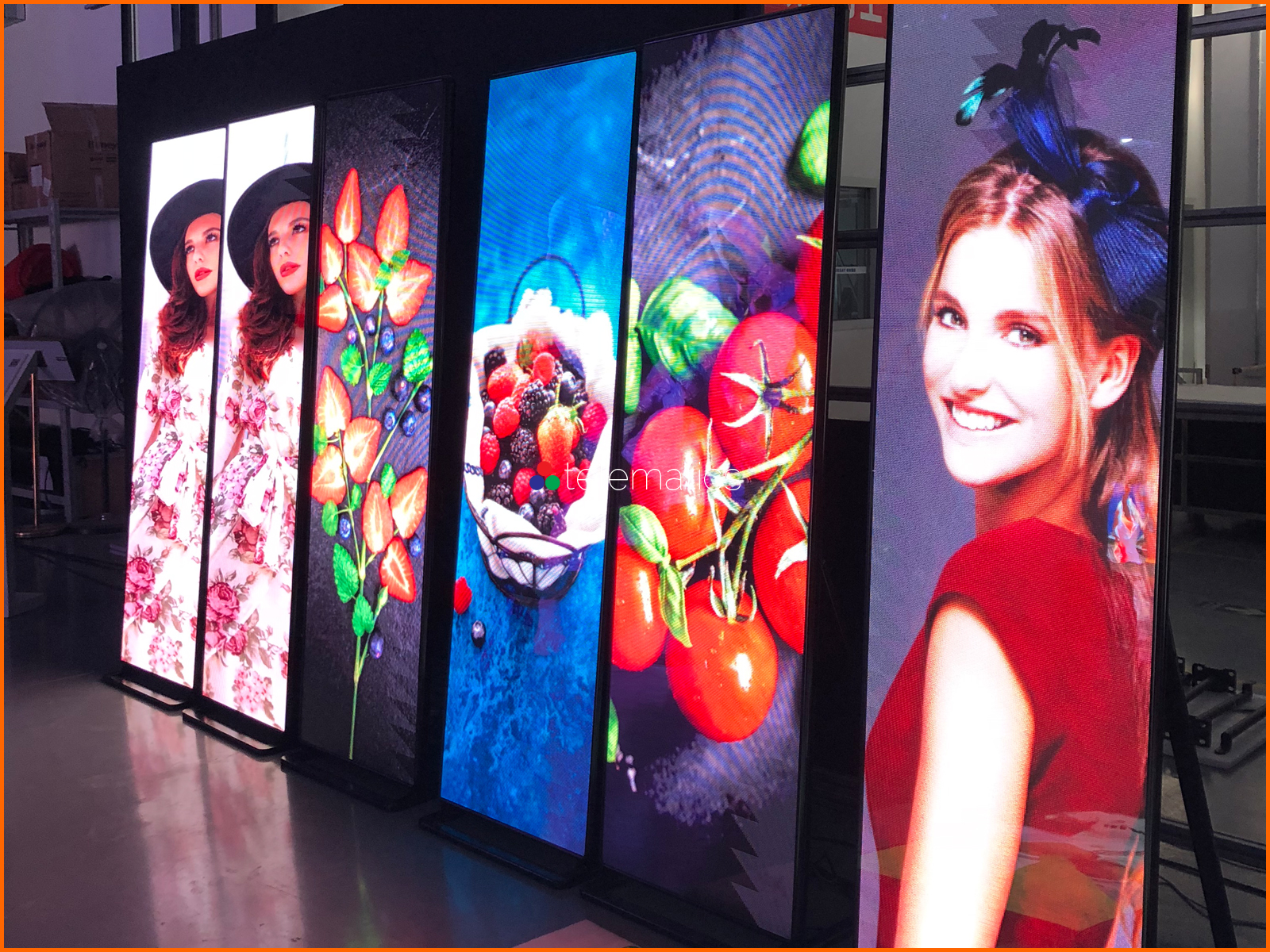

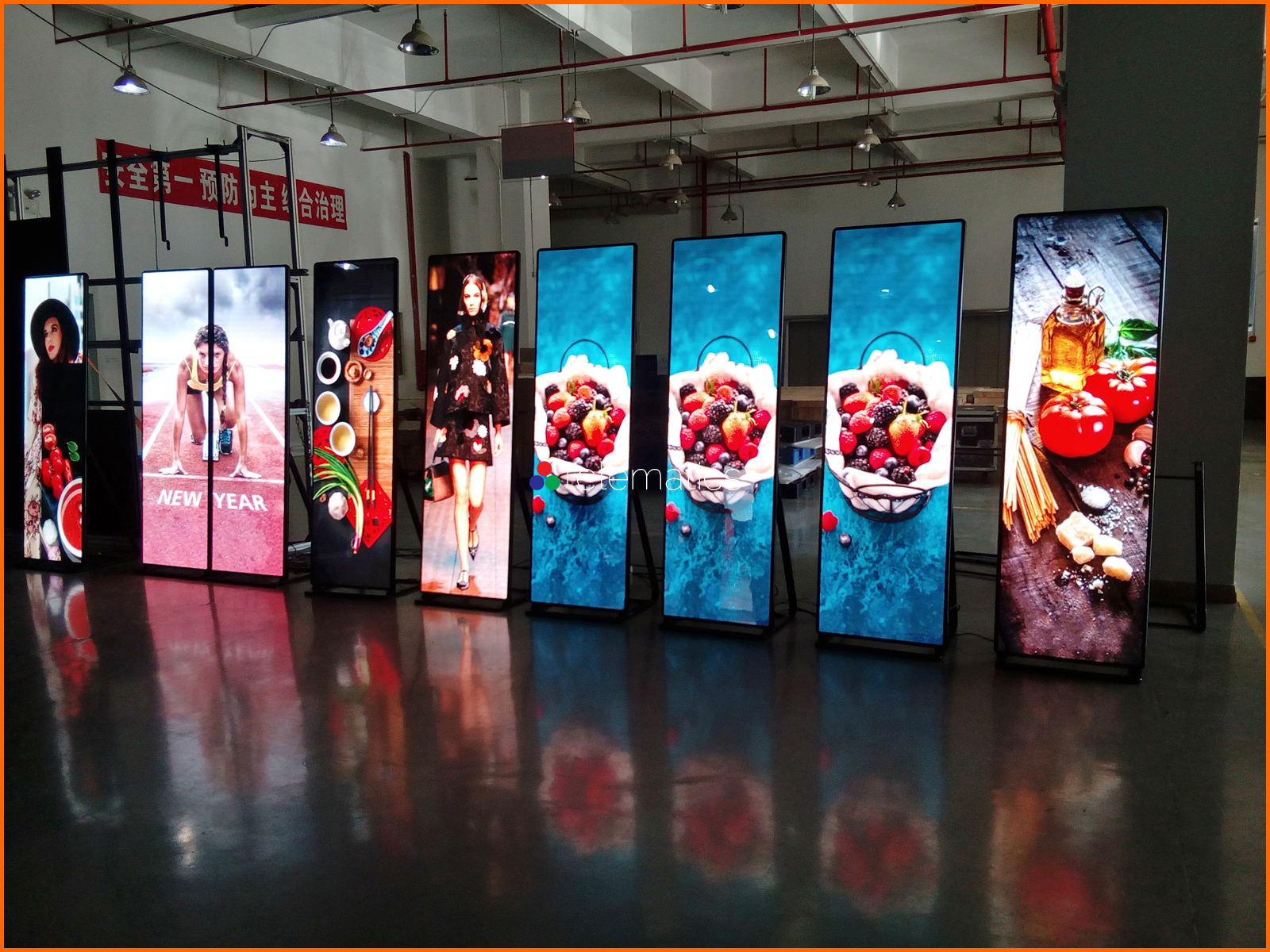

Series A Photos · Factory ⁽¹⁵⁾

Series A

Series A

Series A

Series A

Series A

Series A

Series A

Series A

Series A

Series A

Series A

Series A

Series A

Series A

Series A

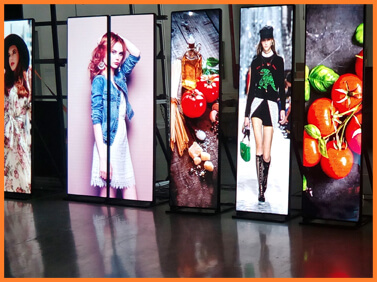

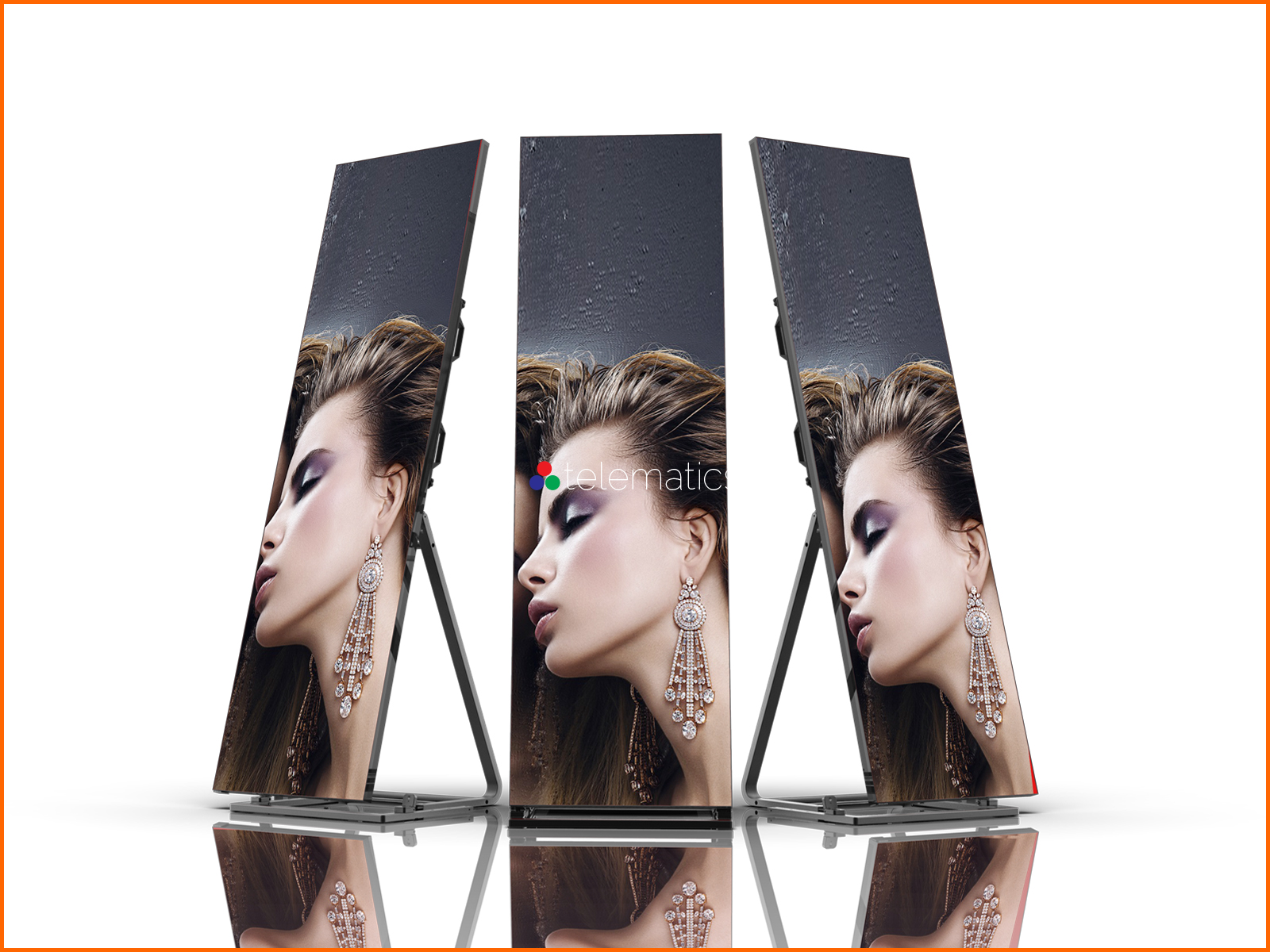

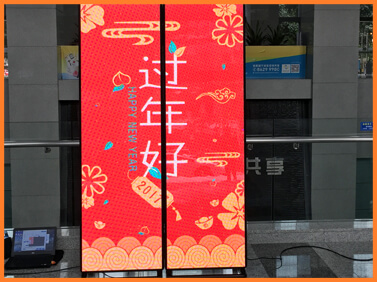

Series A Photos · Portrait ⁽⁹⁾

Series A

Series A

Series A

Series A

Series A

Series A

Series A

Series A

Series A

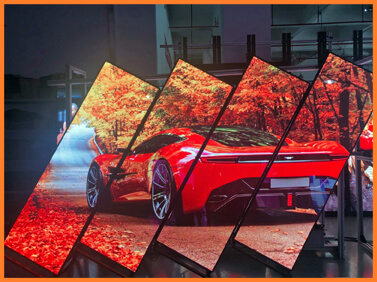

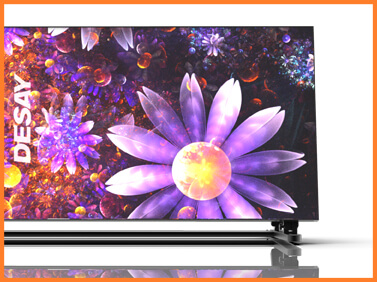

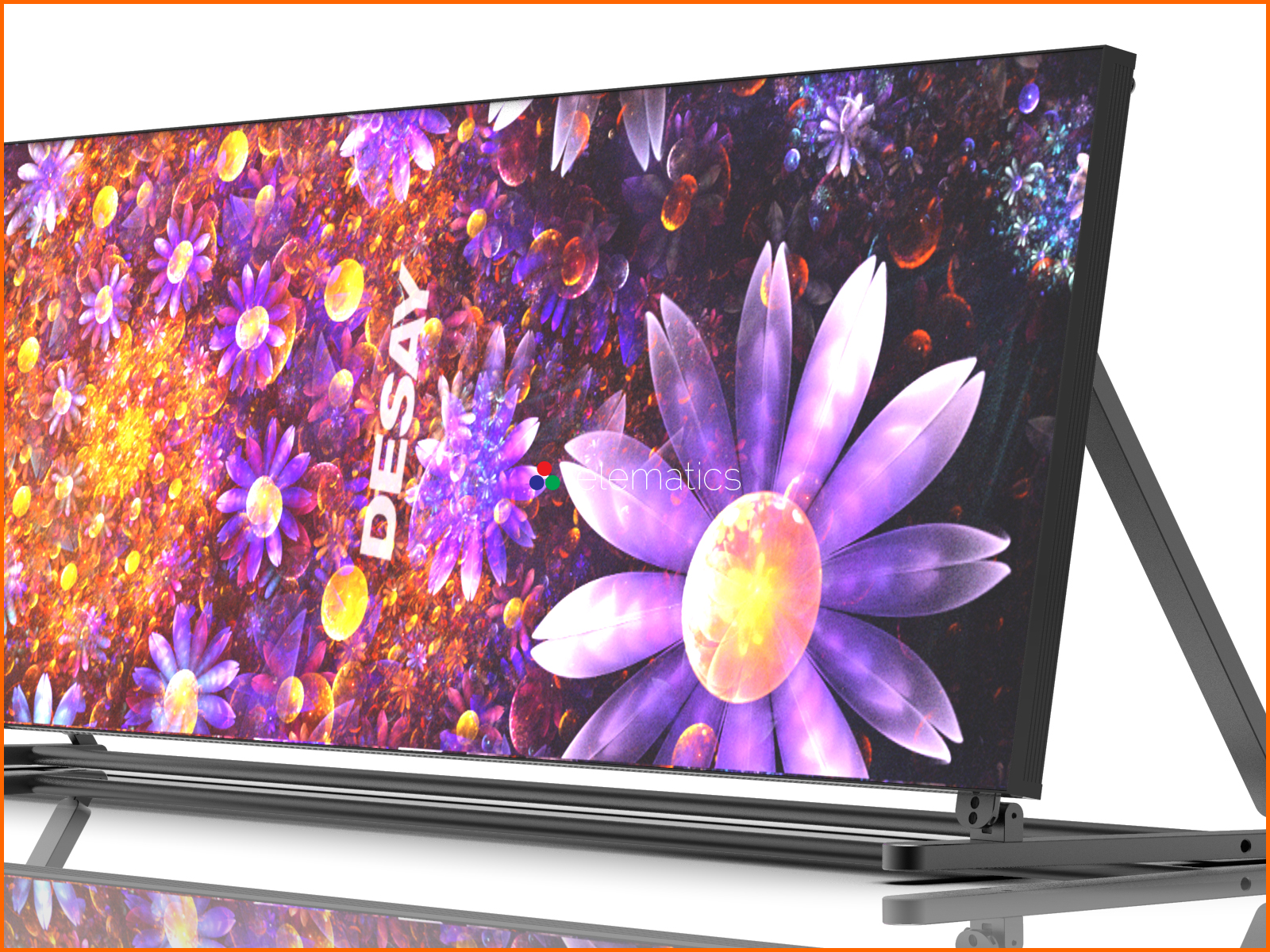

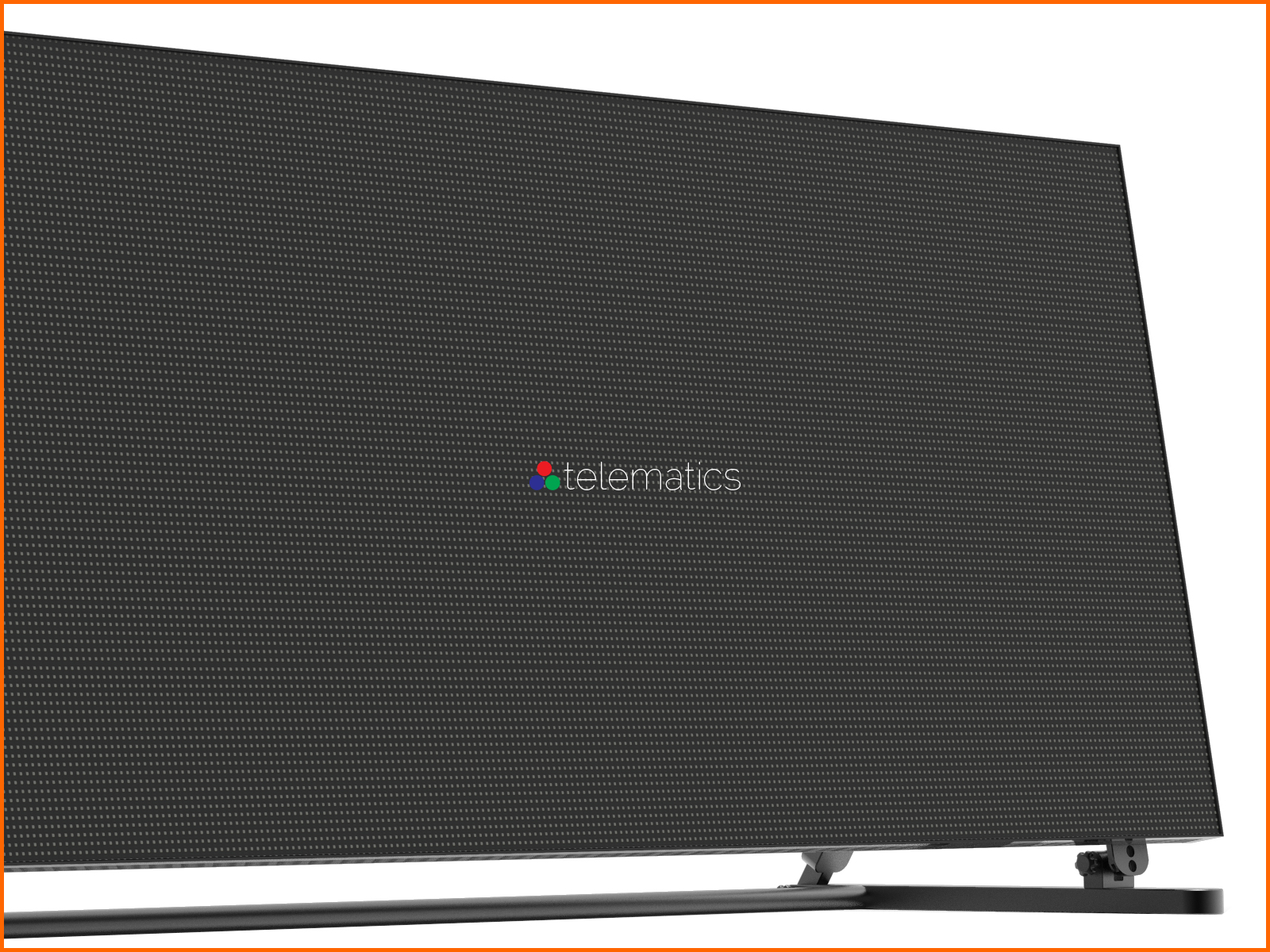

Series A Photos · Landscape ⁽⁹⁾
